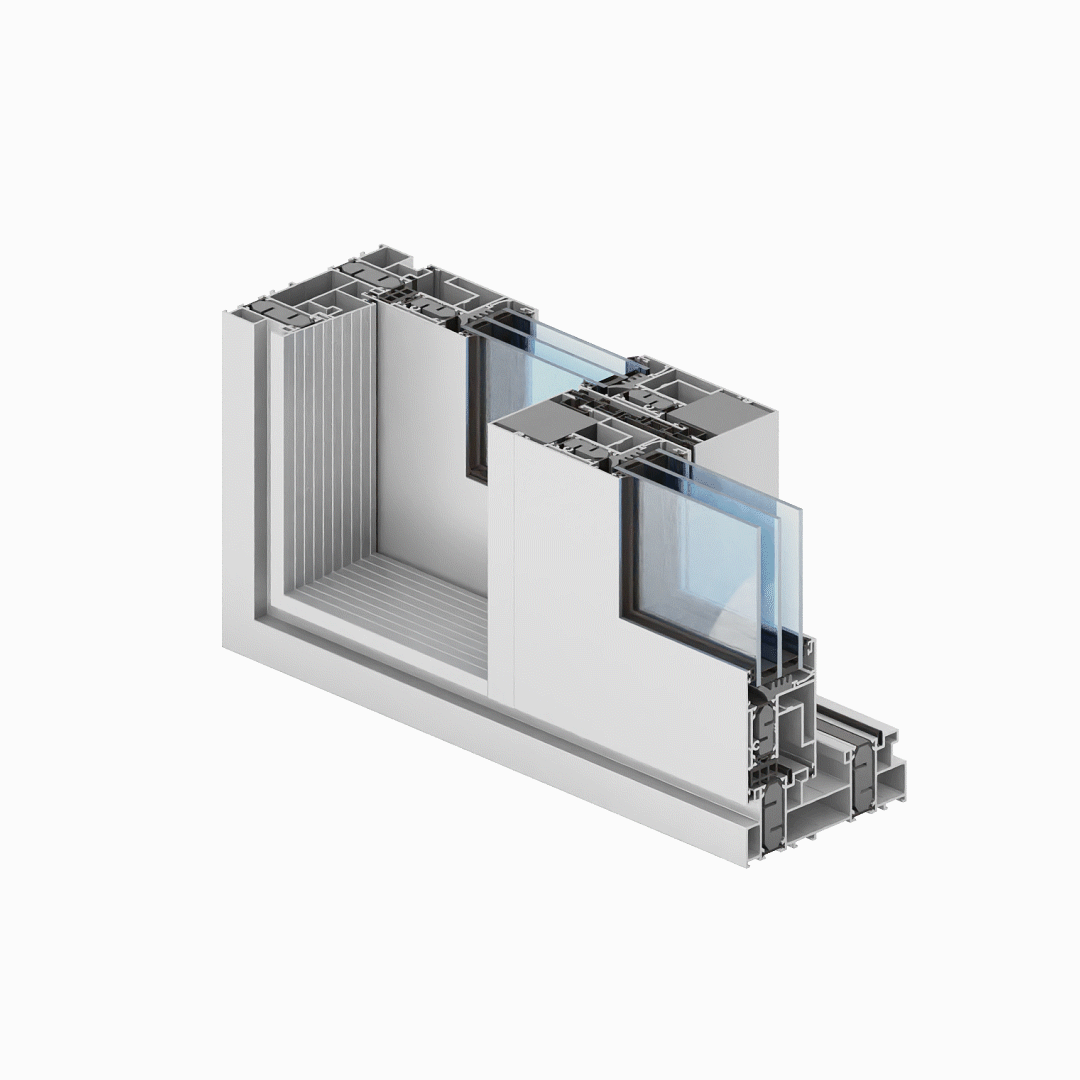

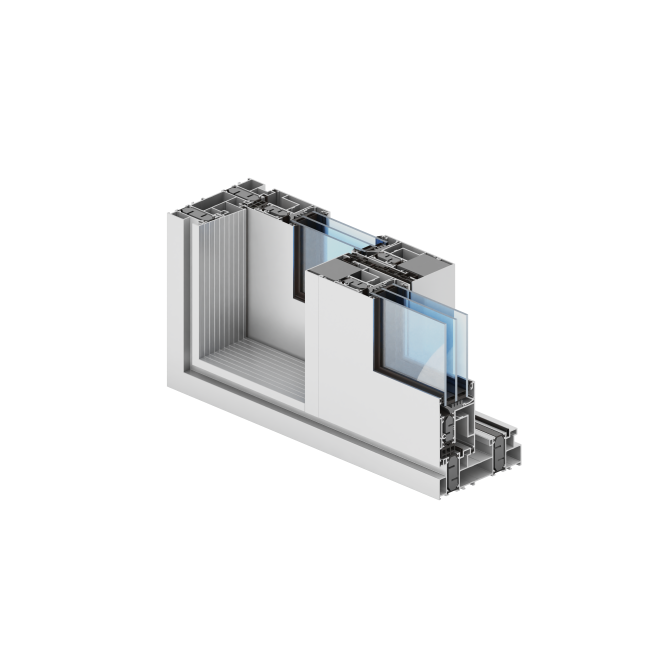

Ultraglide
- a system featuring improved thermal performance, used to design sliding and lift-sliding structures
- the UG sliding structures are intended for residential buildings, mainly private and public buildings
- the system is adapted to the latest requirements relating to thermal performance, aesthetics and safety; available system options: UG low-threshold version, UG – 90° angular solution
- with its parameters, the Ultraglide system makes it possible to design structures with vary large dimensions of sliding leaves; maximum structure dimensions available in the system: leaf height – Hs = 3300 mm; leaf width – Bs = 3500 mm
- the Ultrtaglide system makes it possible to design large – but still stable – sliding windows and doors; maximum leaf weight: 250 kg – sliding option; 400 kg – lift-sliding option
- structure design: 3, 5 and 7 chamber frame
- possible variants with two, three and four components based on the two-rail system
- profiles suitable for installation of various hand-locked hardware available on the market and automatic devices
- various types of infills can be used (double and triple glazed units)
- system is adapted to the latest requirements relating to thermal performance; the system is equipped with a 22 mm/28 mm wide separator improved with glass fibre, thermal inserts and under-glass inserts to improve cross-sectional thermal performance; available options:UG, UGi and UGi+
- used for designing large glazing, which provides natural lighting inside the building and facilitates interior design, with ensured stability, functionality and structure lightness;
- there is possibility of use Flyscreen system (Flyscreen - fly screen are a practical and an extremely funcional protection against insects)
- a wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour
TECHNICAL SPECIFICATION
SYSTEM |
MATERIAL |
DEPTH OF FRAME | DEPTH OF LEAF | GLAZING RANGE | ACOUSTIC | WEIGHT OF LEAF | TYPE OF DOORS |
UG |
aluminium/thermal insulation |
153-239 mm | 67 mm | 14-52 mm | 43 (-2,-6) dB | to 250 kg sliding option / to 400 kg lift sliding option | sliding, lift-sliding |
UG i+ |
aluminium/thermal insulation |
153-239 mm | 67 mm | 14-52 mm | 43 (-2,-6) dB | to 250 kg sliding option / to 400 kg lift sliding option |
sliding, lift-sliding |
PERFORMANCE
SYSTEM | THERMAL INSULATION UF* | AIR PERMEABILITY | WINDLOAD RESISTANCE |
WATERTIGHTNESS |
UG | Uf from 1,45 W/m2K | Class 4; EN 12207 | Class C4 (1600 Pa); EN 12210 |
9A (600 Pa); EN 12208 |
UG i+ | Uf from 1,13 W/m2K | Class 4; EN 12207 | Class C4 (1600 Pa); EN 12210 |
9A (600 Pa); EN 12208 |
* Thermal insulation is dependent on a combination of profiles and thickness of the filling
