Offer

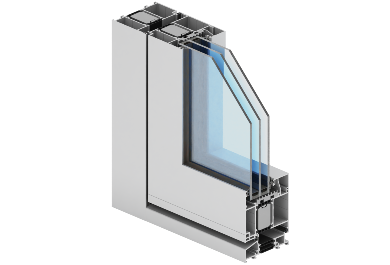

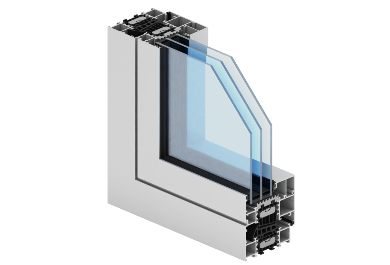

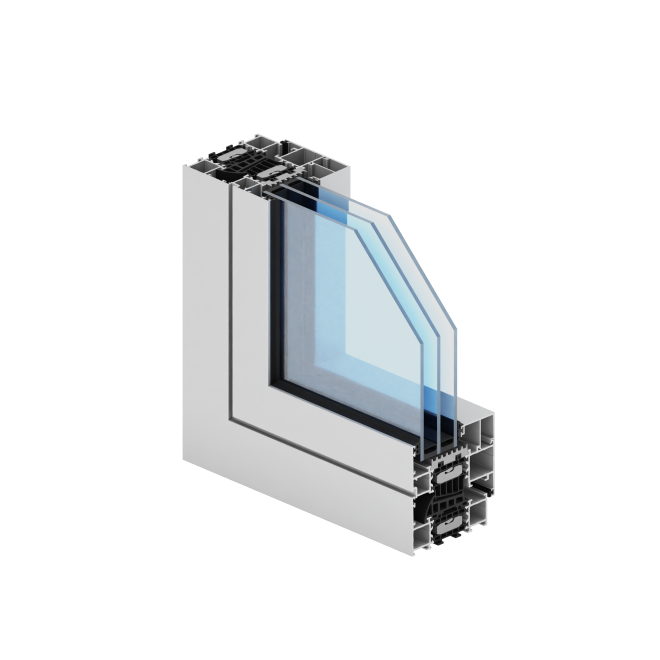

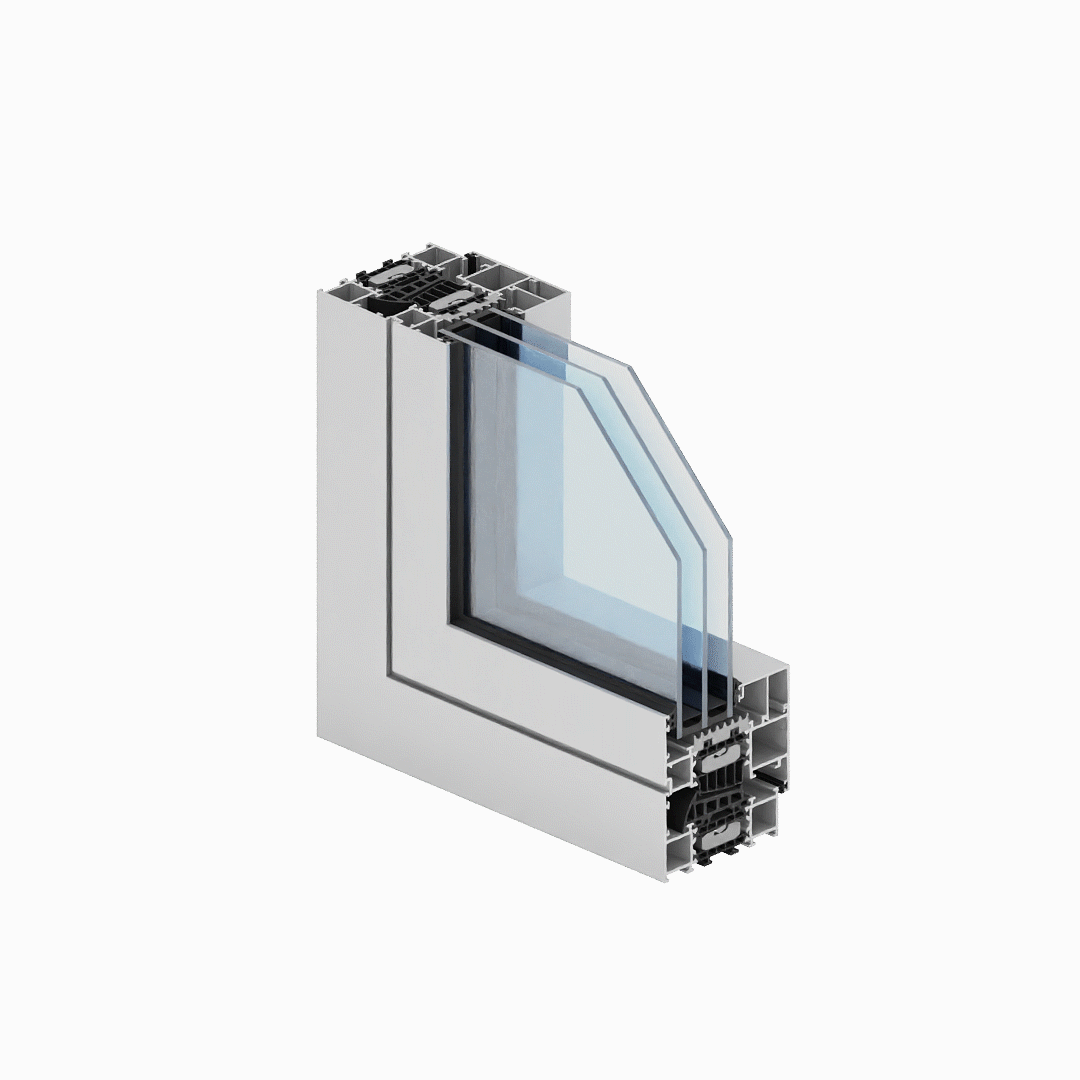

Star

  • the modern aluminium system for designing windows and doors requiring very good thermal insulation
  • thermal separator 45 mm deep, made of solid and proven materials, is an effective thermal barrier
  • the same type of insulation insert in the window sash and in the window frame provides continued protection against heat losses of the whole structure
  • new standard of profile and glass pane interface - increased depth improves thermal properties and structure of the system
  • new type of corner section used preventing collision between the screw and the corner when screwing in surface hardware elements under the PVC groove
  • possibility of adding roller hinge system hardware with very high load bearing capacity
  • innovative drainage system (no visible elements stopping drainage outlets)
  • the same type of corner and T connector in the external and internal cavity (reduced number of accessories, faster fabrication)
  • reduced number of glazing strips and gaskets, while keeping the continuity of glazing depending on package thickness
  • possibility of glazing from the inside
  • option of bending profiles (detailed specification of profiles and detailed technical parameters of profile bending process are available in the customer area of the website www.aliplast.pl)
  • modern design
  • the system is particularly recommended for low energy consumption and thermal insulation retrofitted buildings, and they also improve thermal comfort in standard object
  • there is possibility of use Flyscreen and Insect System
  • wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour.
Show Hide
RAL
Wood Colour
Bicolor
Anode

TECHNICAL SPECIFICATION

SYSTEM MATERIAL

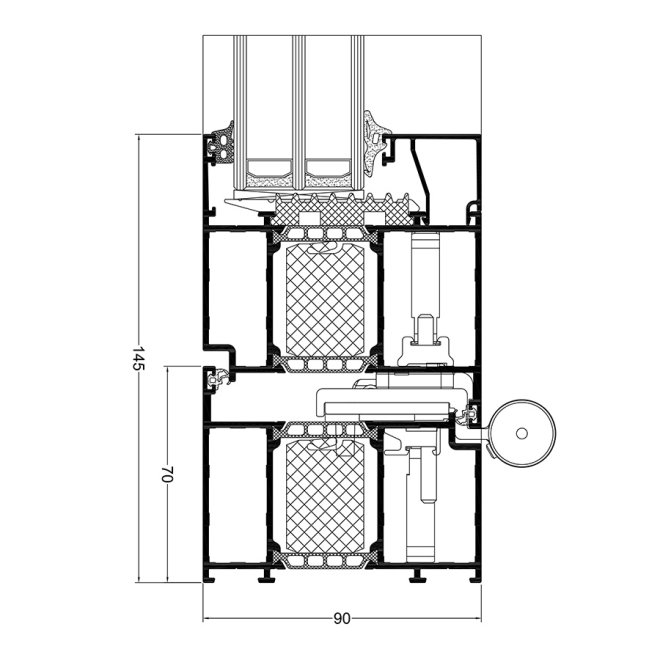

DEPTH OF FRAME

DEPTH OF LEAF

GLAZING RANGE ACOUSTIC TYPE OF WIDNOWS TYPE OF DOORS

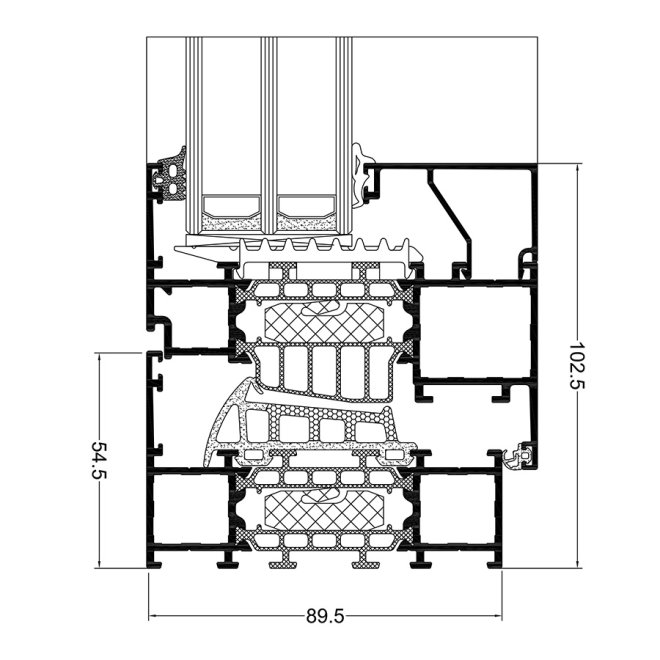

GT window aluminium/ thermal insulation 90 mm 99 mm fix 14-72 mm / 23-81 mm 48 (-2,-5) dB wall, fix, tilt and turn -

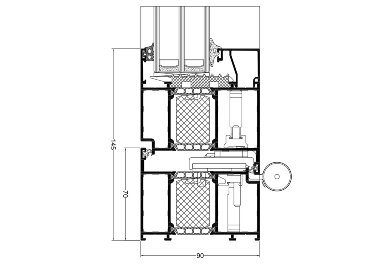

GT door aluminium/ thermal insulation 90 mm 99 mm 14-72 mm 45 (-1,-3) dB - single and double doors, outside and inside opening

PERFORMANCE

SYSTEM THERMAL INSULATION UF*

AIR PERMEABILITY

WINDLOAD RESISTANCE

WATERTIGHTNESS
GT window Uf from 0,73 W/m2K Class 4; PN-EN 12207 Class C5/B5; PN-EN 12210 Class E900; PN-EN 12208
GT door Uf from 1,21 W/m2K Class 4; PN-EN 12207 Class C5/B5; PN-EN 12210 Class E1350; PN-EN 12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling


Files to download

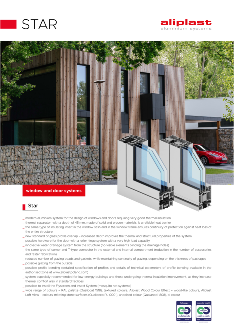

LEAFLET STAR
