Offer

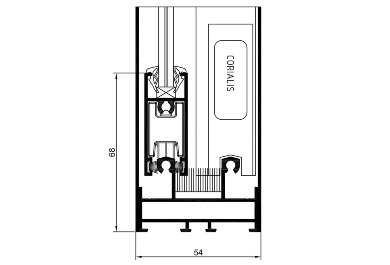

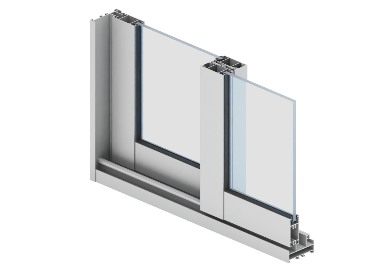

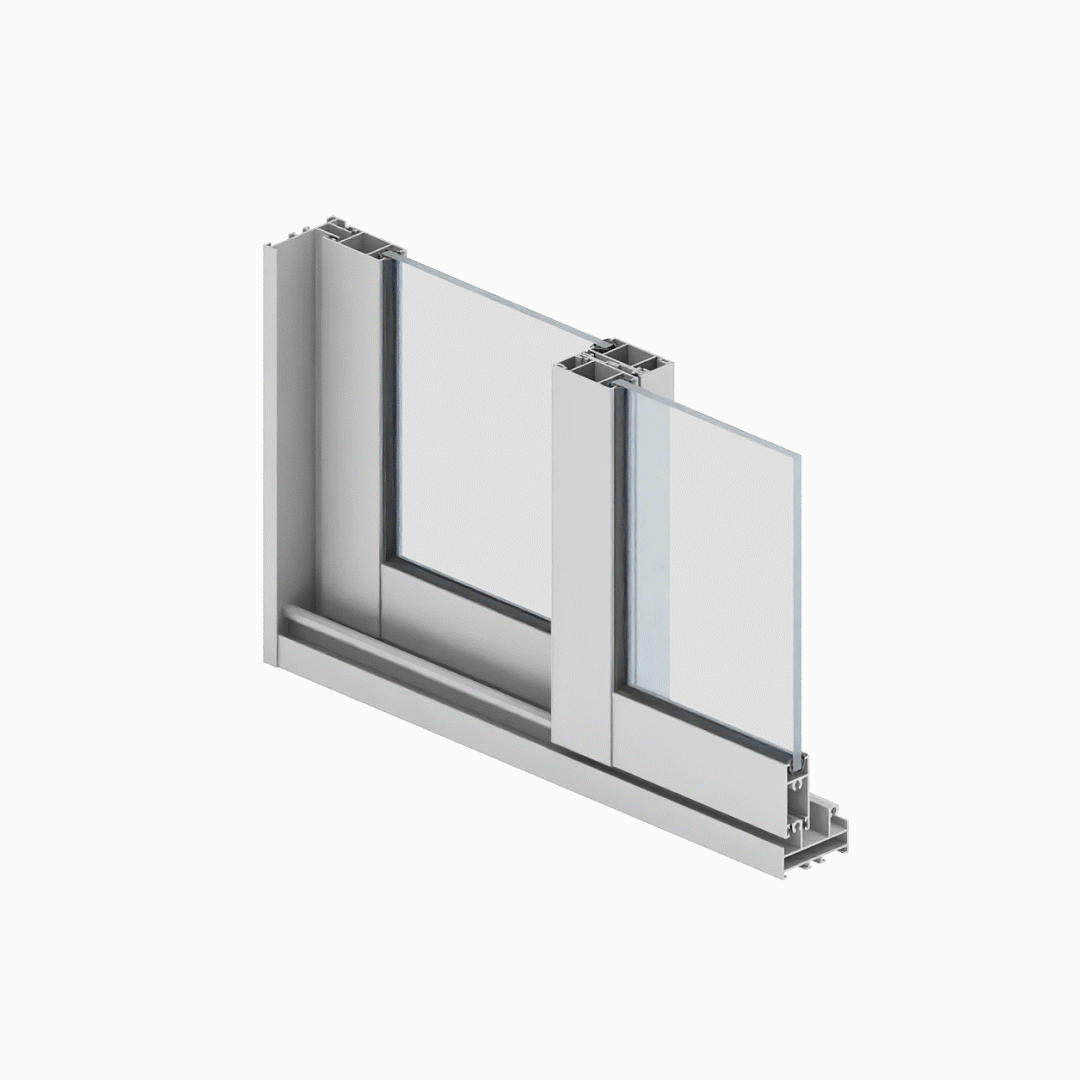

Ecoslide



  • a sliding door system without thermal insulation
  • system intended for designing elements of architectural exterior and interior enclosures that do not require thermal insulation

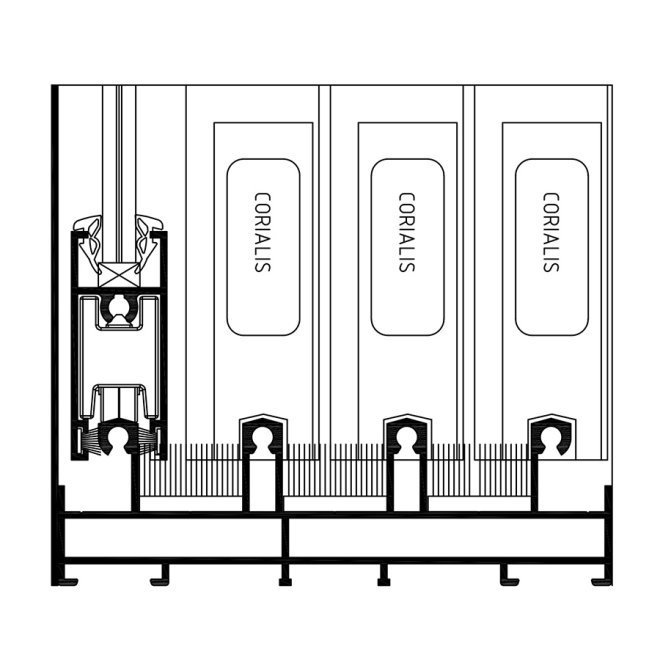

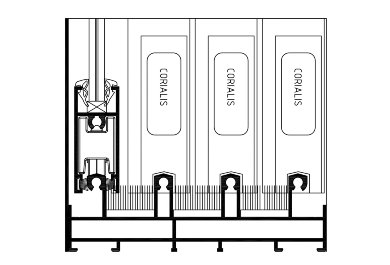

  • the system can have two, three or four rails to design 2-, 3-, 4- and 6-leaf installations.
  • possible infill thickness: 1-12 mm
  • movable leaf trolleys are fixed at the bottom of the leaves
  • the Ecoslide system is compatible with other systems offered by Aliplast

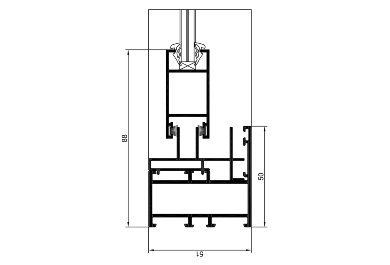

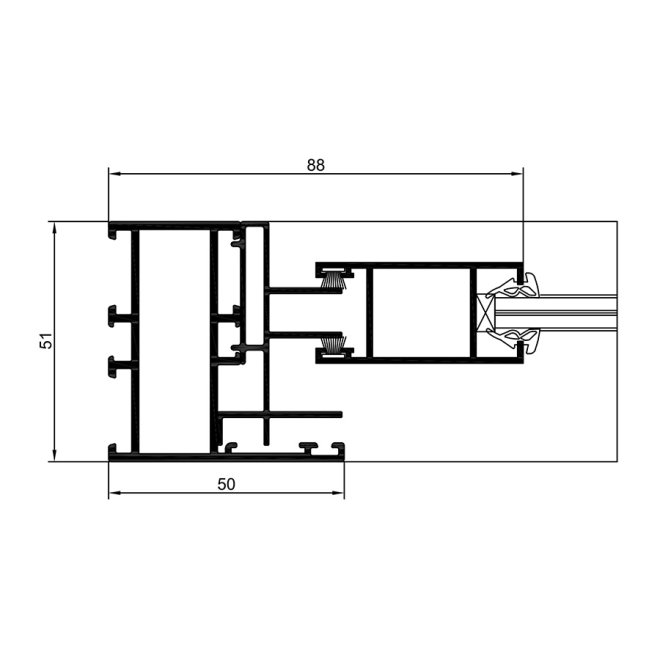

  • there is possibility of use Flyscreen system (Flyscreen – fly screens are a practical andan extremely functional protection against insects)
  • a wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour
Show Hide
RAL
Wood Colour
Bicolor
Anode

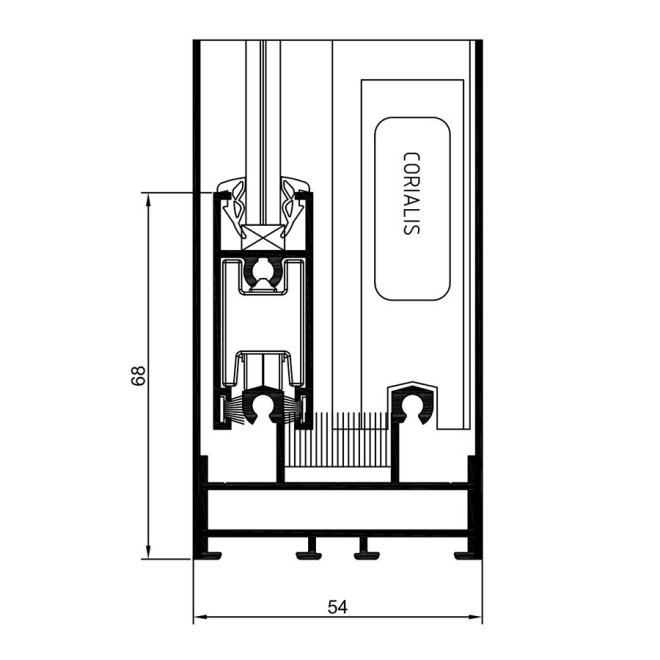

TECHNICAL SPECIFICATION

SYSTEM

MATERIAL DEPTH OF FRAME DEPTH OF LEAF GLAZING RANGE WEIGHT OF LEAF TYPE OF DOORS

ES

aluminium/polyamid 54-106,5 mm 18,5-21,5 mm 4-12 mm to 40 kg sliding

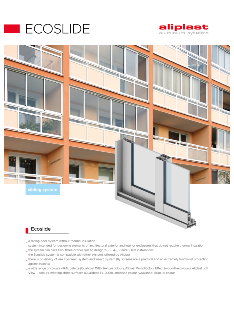

Leaflet  Ecoslide
Leaflet Ecoslide
