Offer

MC Glass

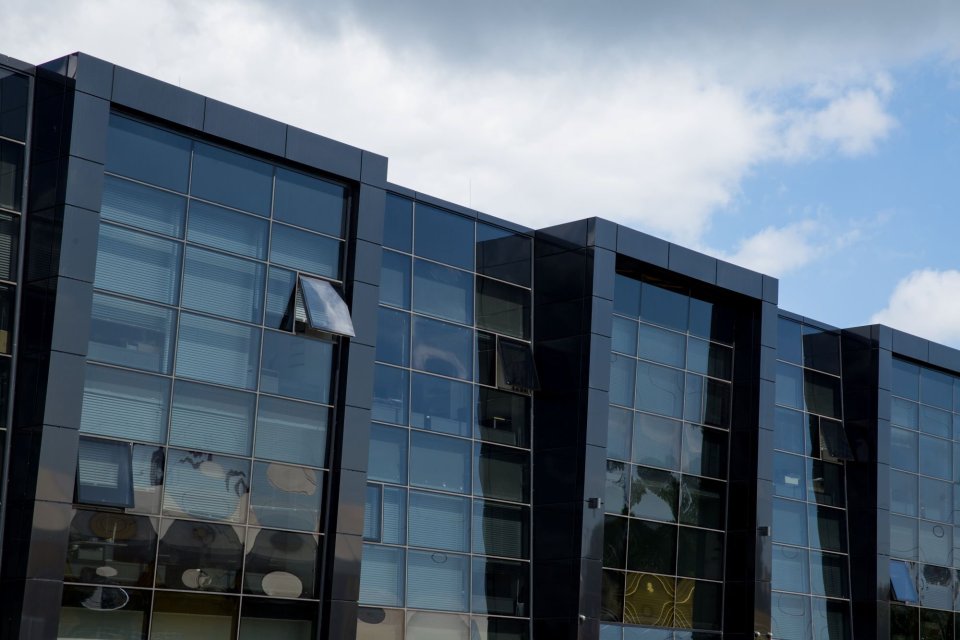

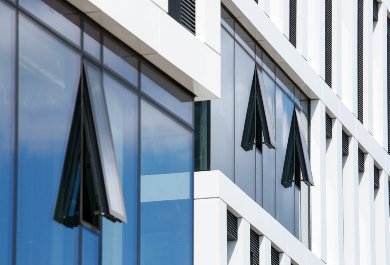

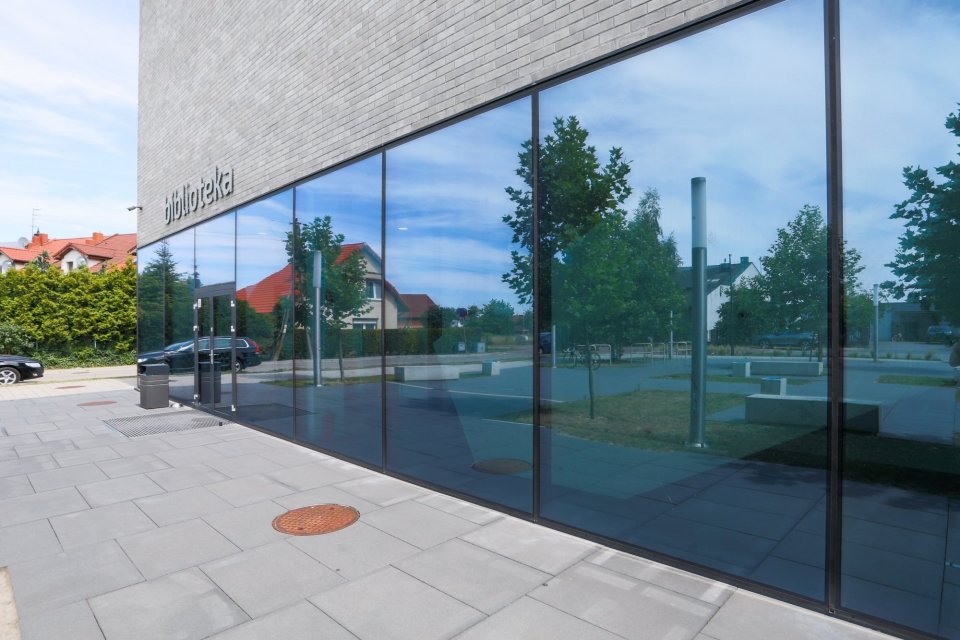

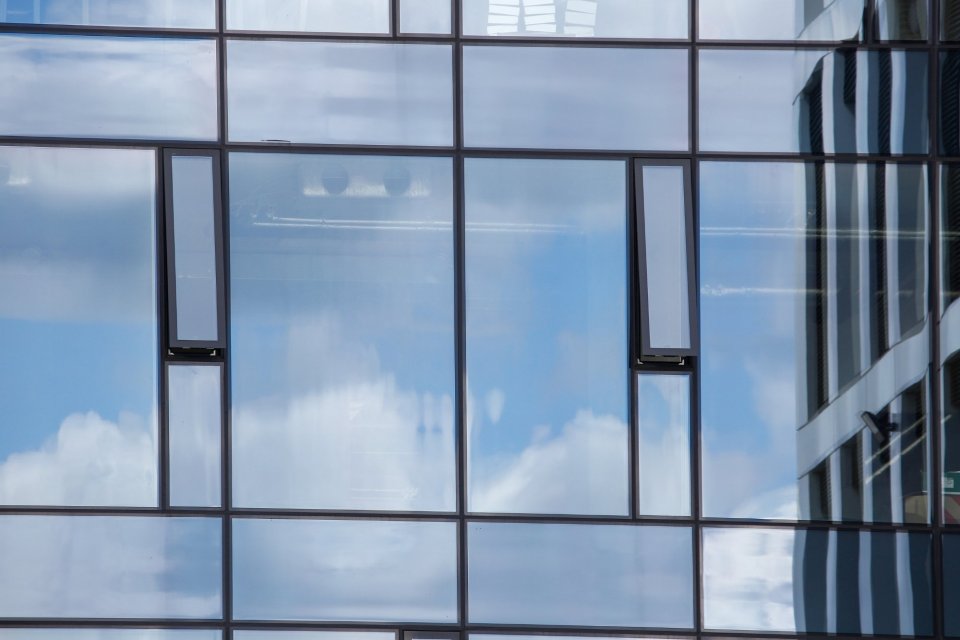

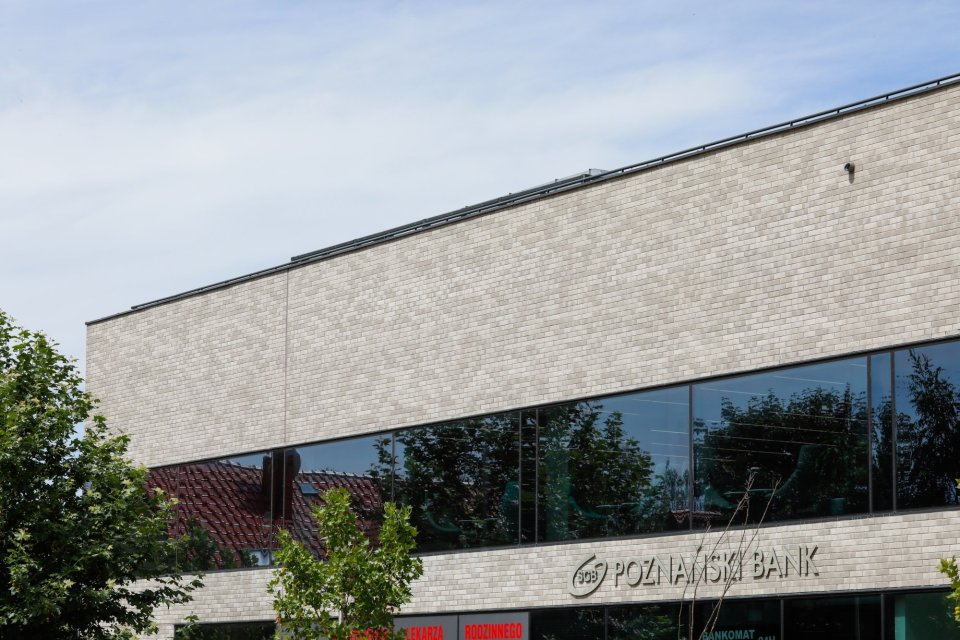

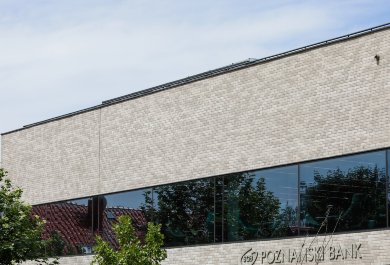

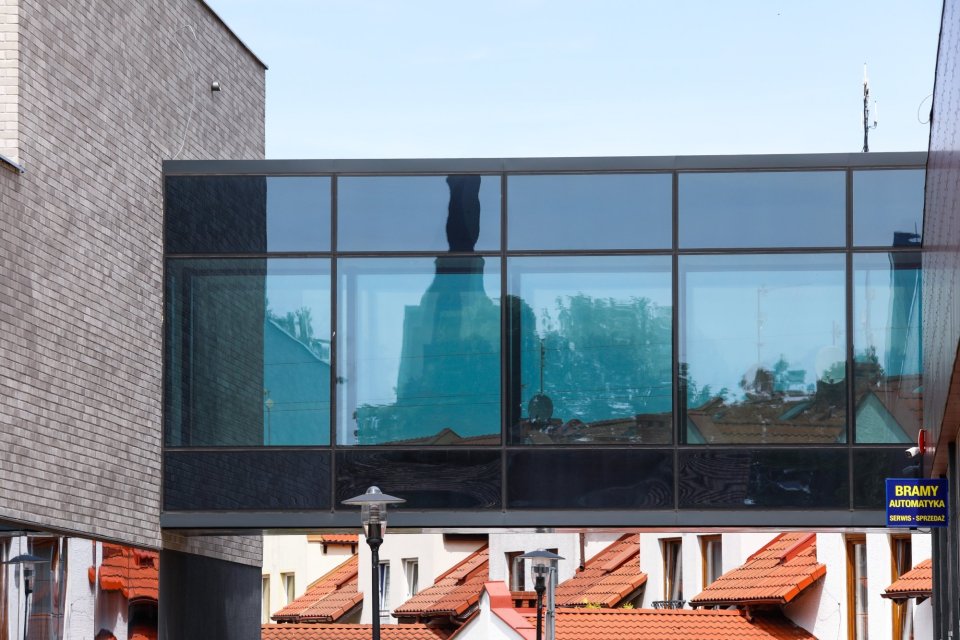

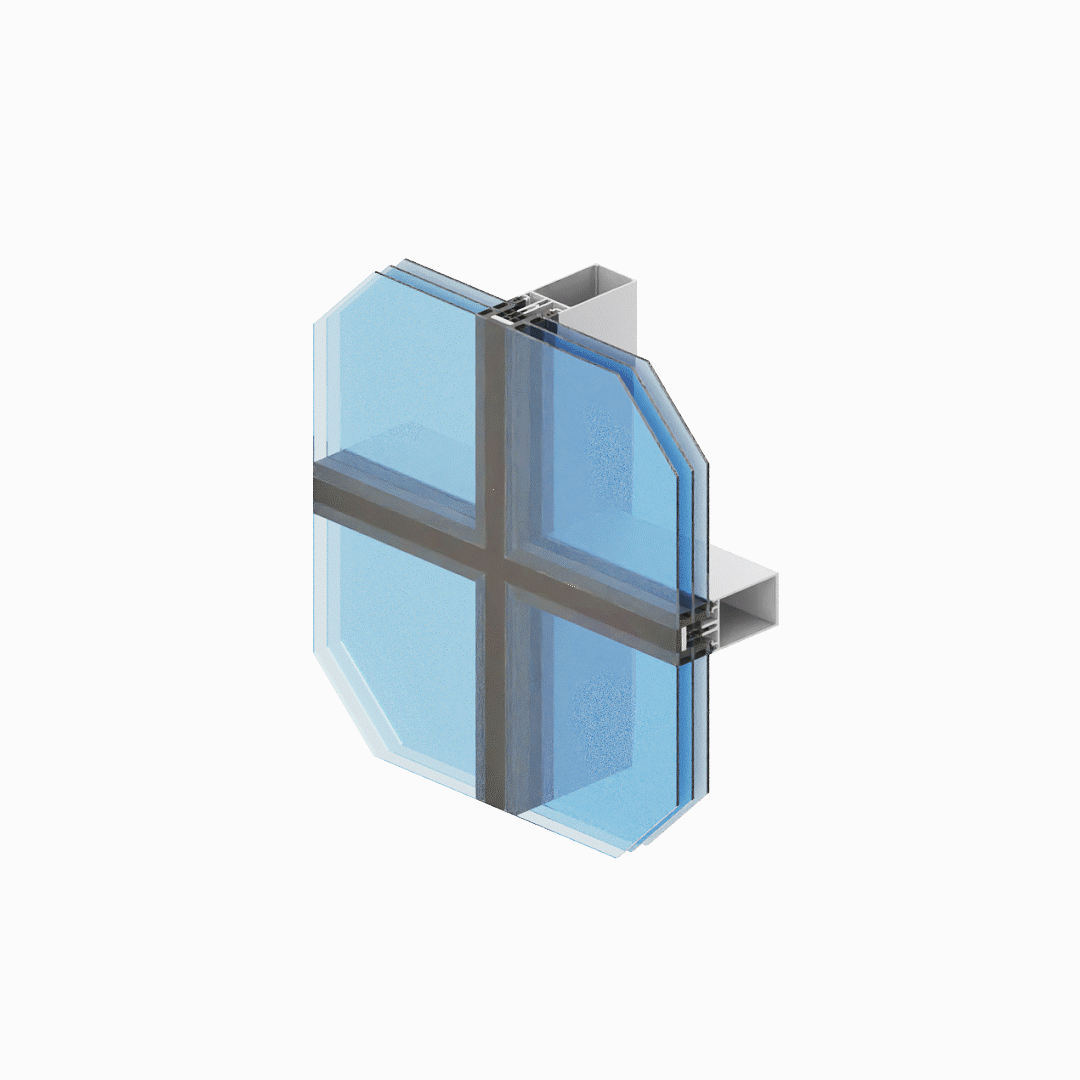

  • the semi-structural facade system; it is used to design facade structures which create a flat surface on the outside without any visible aluminium profiles
  • MC Glass includes curtain walls without any visible external aluminium elements;on the outside only glass infills separated by structural silicone gaps are visible; glazing units have special profiled pockets and gutters in which mounting plates are installed to fasten infills to the curtain wall frame
  • the system features very good thermal performance (Uf starting at 0,66 m2K);such a result can be obtained since innovative insulating materials are used

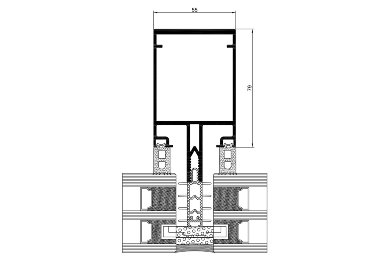

  • mullion-transom visual width: 55 mm
  • a wide range of mullions and transoms suitable for static requirements
  • the facade makes it possible to obtain various appearance versions, in particular the so-called horizontal or vertical line
  • a wide range of decorative cover caps makes it possible to obtain a modern and individual design of the facade
  • a wide range of colours available - RAL palette (Qualicoat 1518), structural colours, Aliplast Wood Colour Effect (Qualideco PL-0001), anodized (Qualanod 1808), bi-colour
Show Hide
RAL
Wood Colour
Bicolor
Anode

TECHNICAL SPECIFICATION

SYSTEM

MATERIAL DEPTH MULLION DEPTH TRANSOM GLAZING RANGE MULLIONS RIGIDITY TRANSOM RIGIDITY

MCG

aluminium 10-326 mm 10-294 mm 30-89 mm 10,2-4092 cm4* 7,0-1831,1 cm4*

* There is a possibility to use additional reinforcements

PERFORMANCE

SYSTEM

THERMAL INSULATION UF* AIR PERMEABILITY WINDLOAD RESISTANCE WATERTIGHTNESS

MCG

Uf from 0,66 W/m2K Class AE1300; EN 12152 2000Pa - 3000Pa; EN 13116 Class RE1800; EN 12154

*Thermal insulation is dependent on a combination of profiles and thickness of the filling

attributes

Thermal insulation:  with thermal insulation,
Apperance:  Structures which create a flat surface on the outside without any visible aluminium profiles,
Frame profile depth:  10 mm - 326 mm,

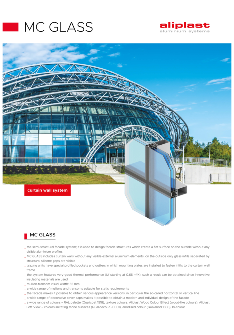

Leaflet Mc Glass
Leaflet Mc Glass
