Ideal

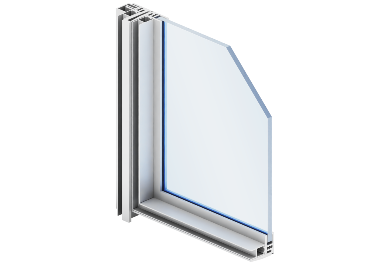

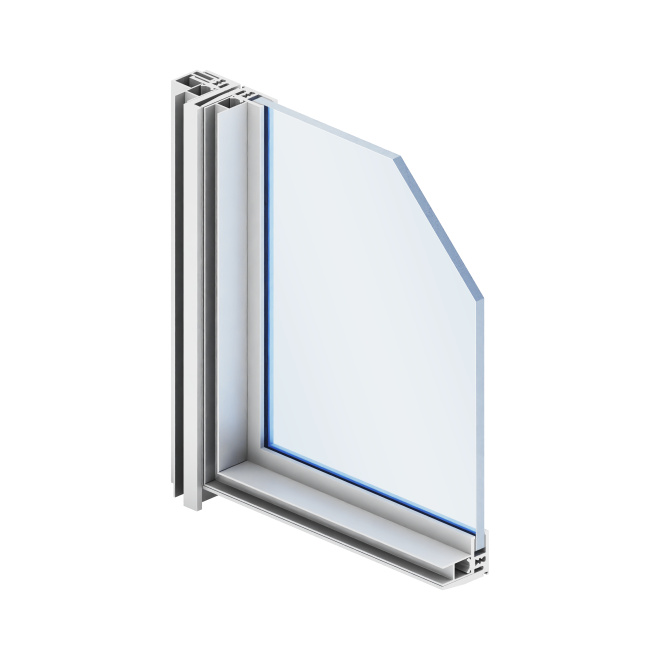

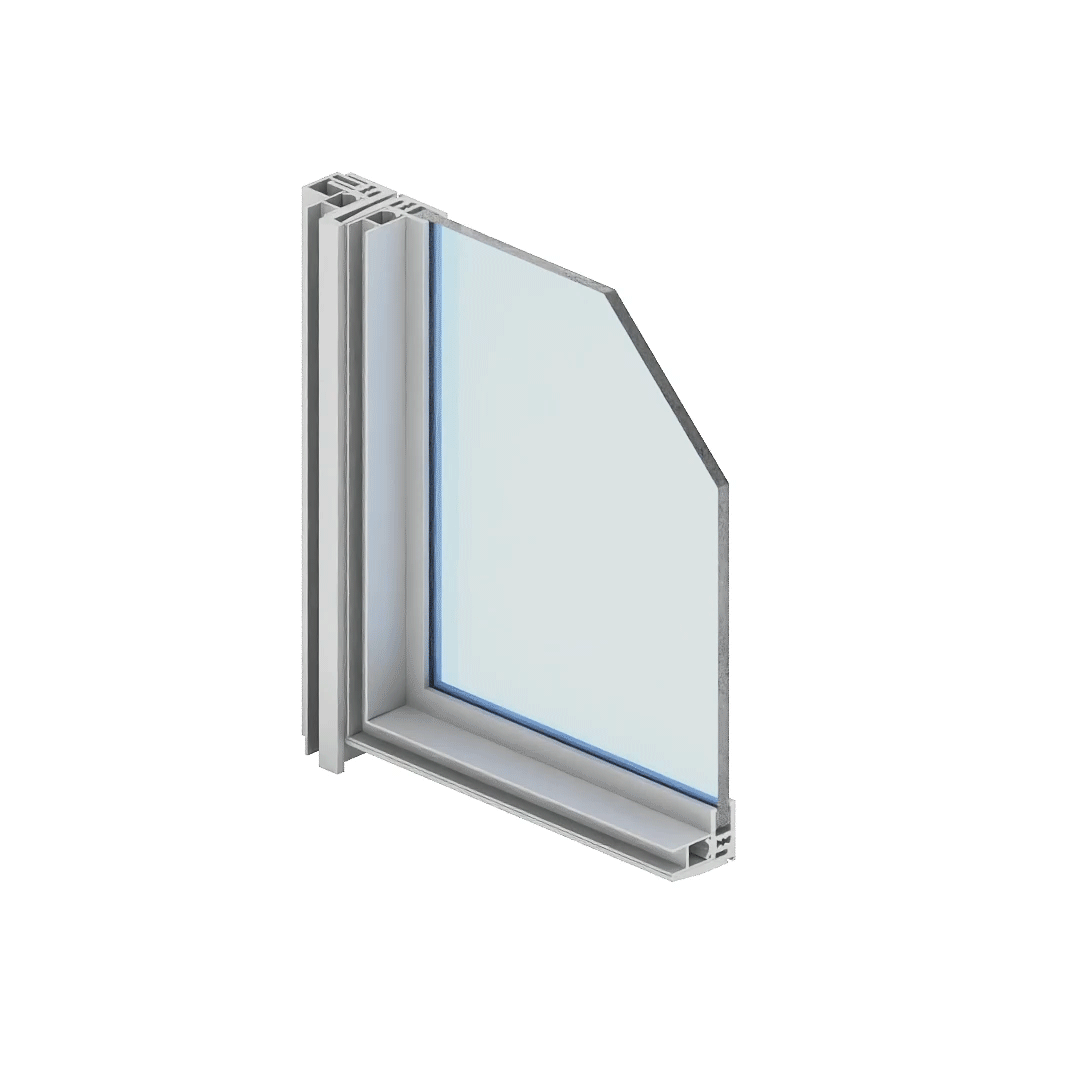

IDEAL – an industrial-style internal aluminium installation system without thermal insulation.
IDEAL  is a system solution for modern spaces, bringing a loft touch to the interior.

  • The system is intended to design industrial-style internal installation.

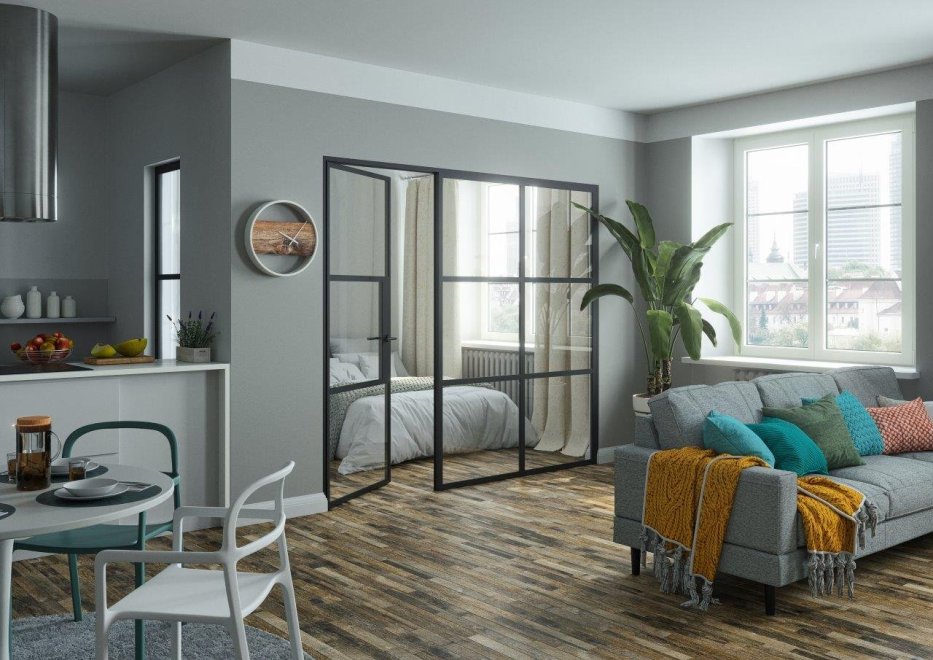

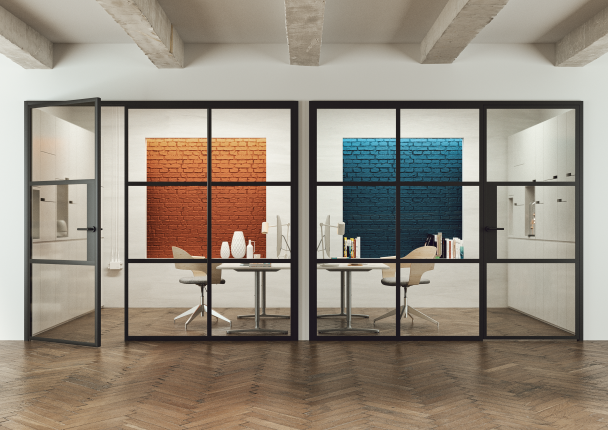

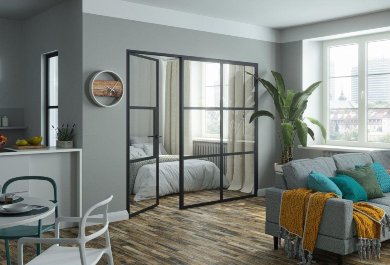

  • IDEAL is a door and internal wall system available in many options: single doors, double doors, revolving doors (pivot type). It is also possible to install permanent glazing around the IDEAL doors with top and/or side light. Depending on the demand and the style of the interior, a permanent wall solution is also available, with or without astragal bars.

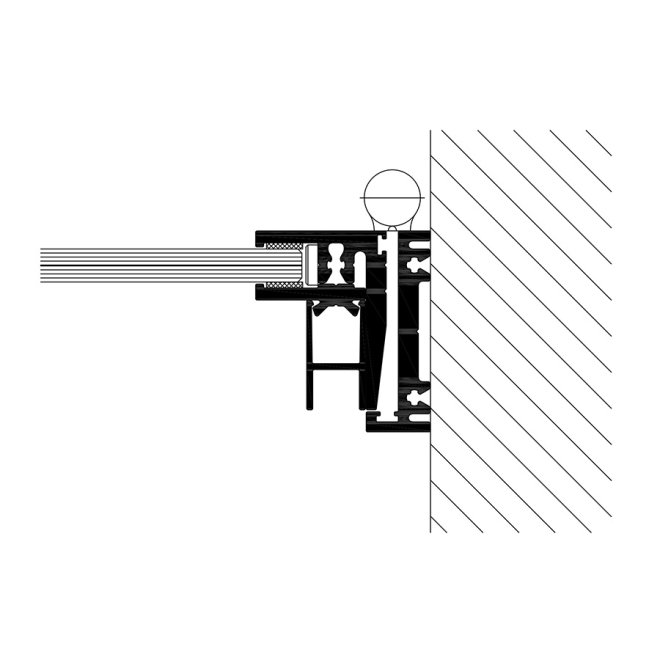

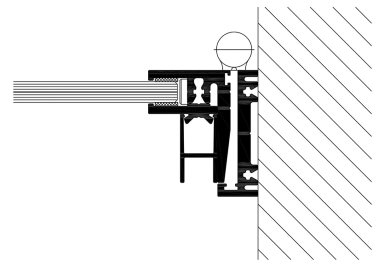

  • The IDEAL system is based on a thin profile /33 mm/ allowing the engineer structures that fit into modern and classic design.

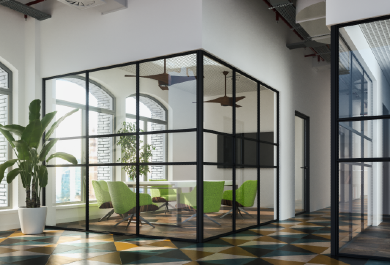

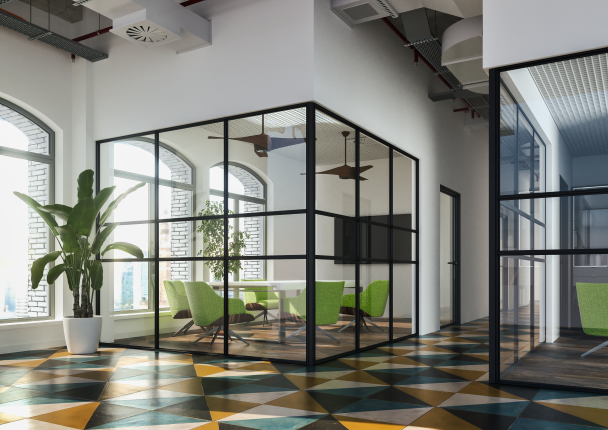

  • The IDEAL glazing system is an alternative to the classic partition walls that separate rooms.

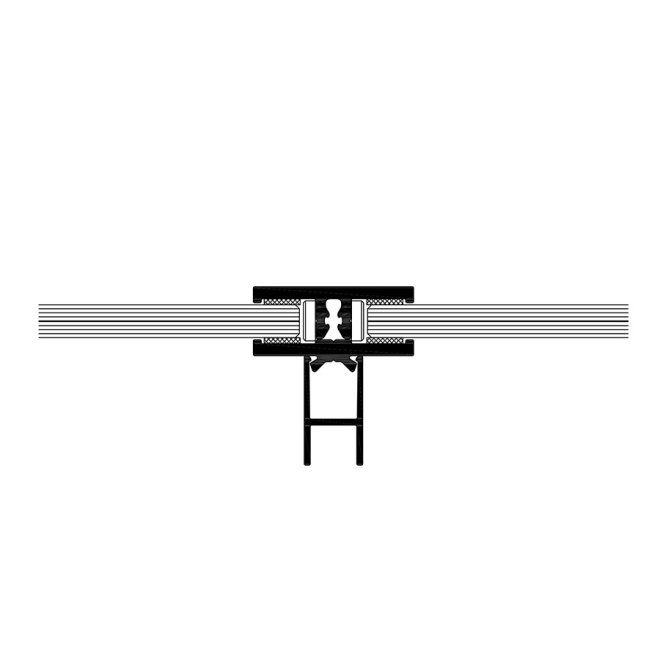

  • Both the doors and walls of the IDEAL system can have different division patterns, which allows a perfect fit to the interior design. Versatility and functionality are further advantages of the IDEAL system.

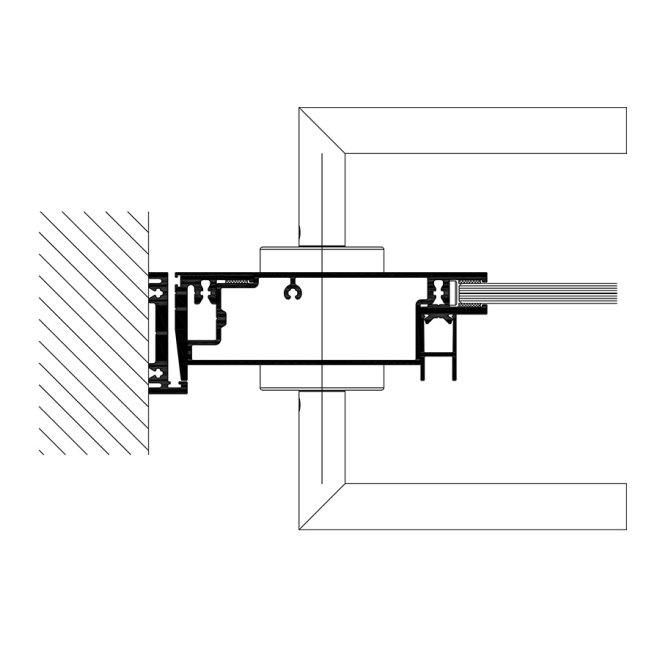

  • In order to maintain consistency, the IDEAL system includes specially designed handle grips and matching handles and trim rings. Available types: handle grips, handles, trim rings /lock with cylinder/, trim ring /lock with key/, trim ring /lock with latch/
  • A wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour



Show Hide
RAL
Wood Colour
Bicolor
Anode

TECHNICAL SPECIFICATION

SYSTEM MATERIAL VISIBLE VIDTH VISIBLE VIDTH OF THE DOOR LIGHT POSSIBILITY OF GLAZING MAXIMUM WIDTH OF THE STRUCTURE HINGES
IDEAL aluminium/polyamid from 33mm 40 mm 8-10-12 mm 2000 mm visible or concealed (adjustable)
