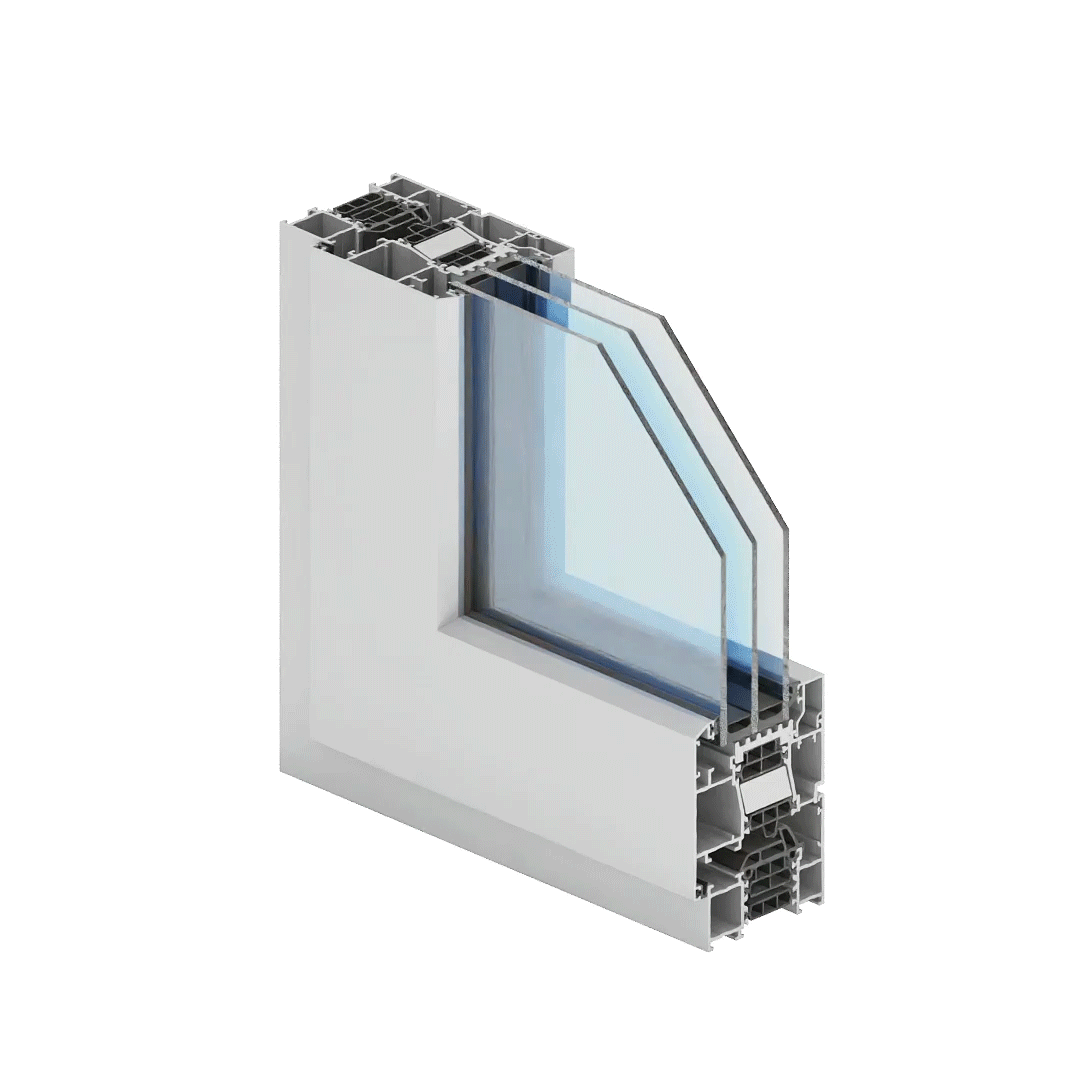

Superial OUT



  • system Superial OUT is designed for designing tilt out and turn out windows
  • system Superial OUT is fully compatible with window system Superial (they share system elements: connectors, gaskets, glazing strips)
  • system Superial OUT features faced internal surface of the frame and the sash.
  • turn out windows can be fitted with two types of hinges: rotating hinges or scissor hinge; window hardware used allows tilting the top or the bottom of the window outwards; option of turn out window with the limit stop
  • turn out windows can be fitted with two types of hinges: rotating hinges or scissor hinges
  • the available option of integrating windows with walls by using reversing profile
  • the option of bending profiles (detailed specification of profiles and detailed technical parameters of profile bending process are available in the customer area of the website www.aliplast.pl)
  • maximum dimensions and weights of structures in SP OUT system:
    - tilt out windows: minimum width and height of sash 500 mm,
    maximum width and height of sash 2000 mm, maximum weight
    of sash 100 kg for tilt out windows
    - turn out windows: minimum width and height of sash 500 mm,
    maximum width of sash 1500 mm, height of sash 3000 mm,
    maximum weight of sash 120 kg for turn out windows
  • system SP OUT is available in the variant with improved thermal insulation power: available options:
    SP OUT i with additional, peripheral thermal insulation, at the profile-glass interface; SP-OUT i+ with additional thermal insulation between thermal spacers

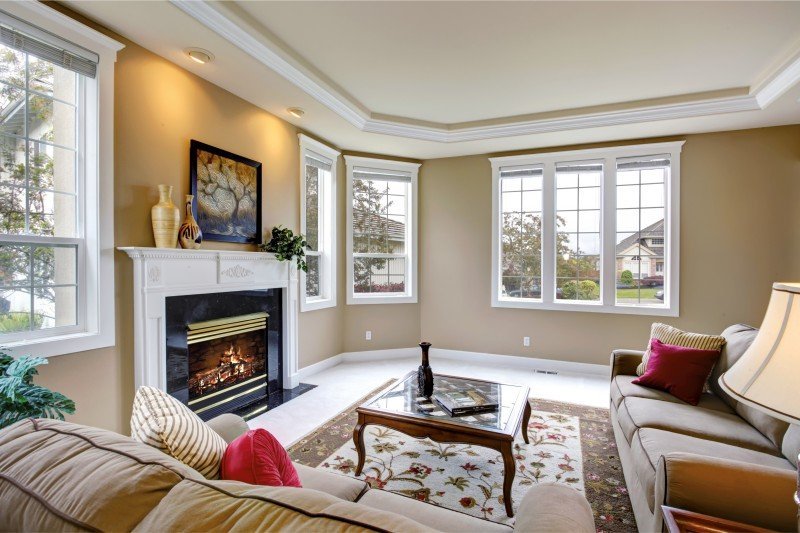

  • this system is very popular in Nordic countries and on British Isles; perfectly matching old and stylized manor houses, wood cabins or simple Scandinavian type houses; shutters are often used with such windows
  • a wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour.
Show Hide
RAL
Wood Colour
Bicolor
Anode

TECHNICAL SPECIFICATION

System Material Depth of Frame

Depth of leaf

Glazing range Type of windows
SP OUT aluminium/polyamid 75 mm

84 mm

max 61 mm outward
SP OUT i+ aluminium/polyamid 75 mm

84 mm

max 61 mm outward

Performancce

system THERMAL INSULATION UF*

AIR PERMEABILITY

WINDLOAD RESISTANCE WATERTIGHTNESS
SP OUT Uf from 1,65 W/m2K

Class 4; EN 12207

Class C5/B5; EN 12210 Class E900; EN 12208
SP OUT i+ Uf from 1,41 W/m2K

Class 4; EN 12207

Class C5/B5; EN 12210 Class E900; EN 12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling

Files to download

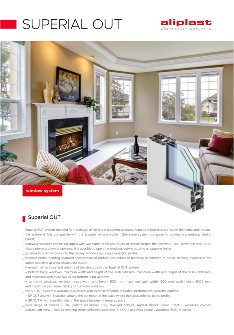

 LEAFLET SUPERIAL OUTWARD
