Offer

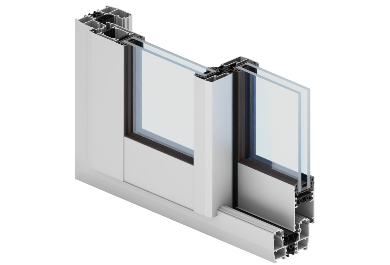

Modern Slide

  • this is a system used to design sliding structures featuring improved thermal performance; Modern Slide is a system of sliding structures to be used in residential housing, private housing and public buildings; galandage is a unique structural solution to open the door entirely as door leaves are hidden in chambers in building walls
  • the system featuring improved thermal performance is used to design sliding structures
  • the solutions offered by the Modern Slide system make are suitable for designing sliding structures on 2-, 3- and 4-rail frames, which offers great flexibility for facade design
  • the galandage solution makes it possible to hide almost completely sliding leaves in the building wall to maximise the clear opening once the structure leaves are opened

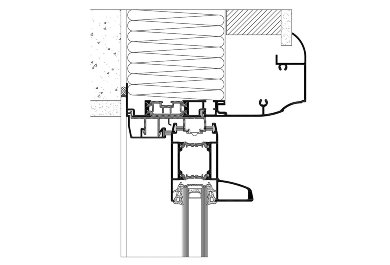

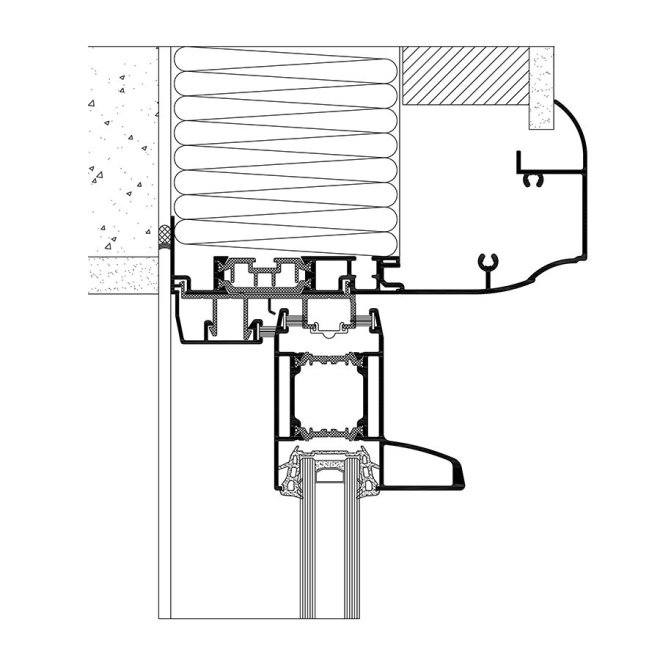

  • the system also offers the monoblock solution; monoblock sliding structures are installed within the thermal insulation layer, which is located inside rooms
  • the width of the joint between two structure leaves is only 35 mm; the profiles are available in 3 versions suitable for various resistance-related requirements
  • the system is characterised by structural slenderness and modern design
  • maximum leaf weight in the structure up to 250 kg
  • available infill thickness values: 24, 28 and 32 mm
  • there is apossibility of use Flyscreen system (Flyscreen - fly screens are a practical and an extremely functional protection against insects)
  • a wide range of colours available - RAL palette (Qualicoat 1518), structural colours, Aliplast Wood Colour Effect (Qualideco Pl-0001), anodized (Qualanod 1808), bi-colour
Show Hide
RAL
Wood Colour
Bicolor
Anode

TECHNICAL SPECIFICATION

SYSTEM

MATERIAL

DEPTH OF FRAME DEPTH OF LEAF GLAZING RANGE WEIGHT OF LEAF TYPE OF DOORS
MDS

aluminium/polyamid

73,8-195,9 mm 44 mm

21 mm / 28 mm / 32 mm

to 250 kg sliding

PERFORMANCE

SYSTEM

THERMAL INSULATION UF* AIR PERMEABILITY WINDLOAD RESISTANCE WATERTIGHTNESS

MDS

Uf from 1,50 W/m2K Class 3; EN 12207 Class C1 (400 Pa); EN 12210 Class 6A (250 Pa); EN12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling



attributes

Thermal insulation:  with thermal insulation,
Apperance:  Galandage solution – sliding leaves concealed in the building wall,
Frame profile depth:  73,8 mm - 195,9 mm,
Functions:  sliding door,
