Steel Look

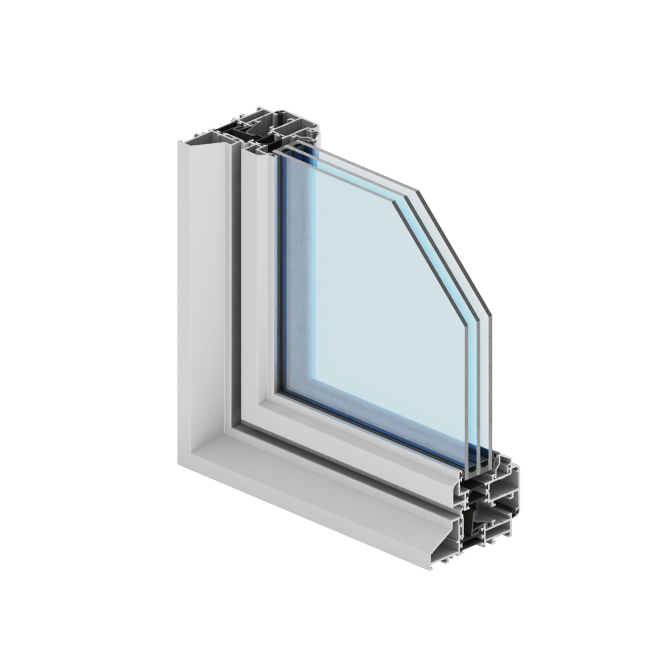

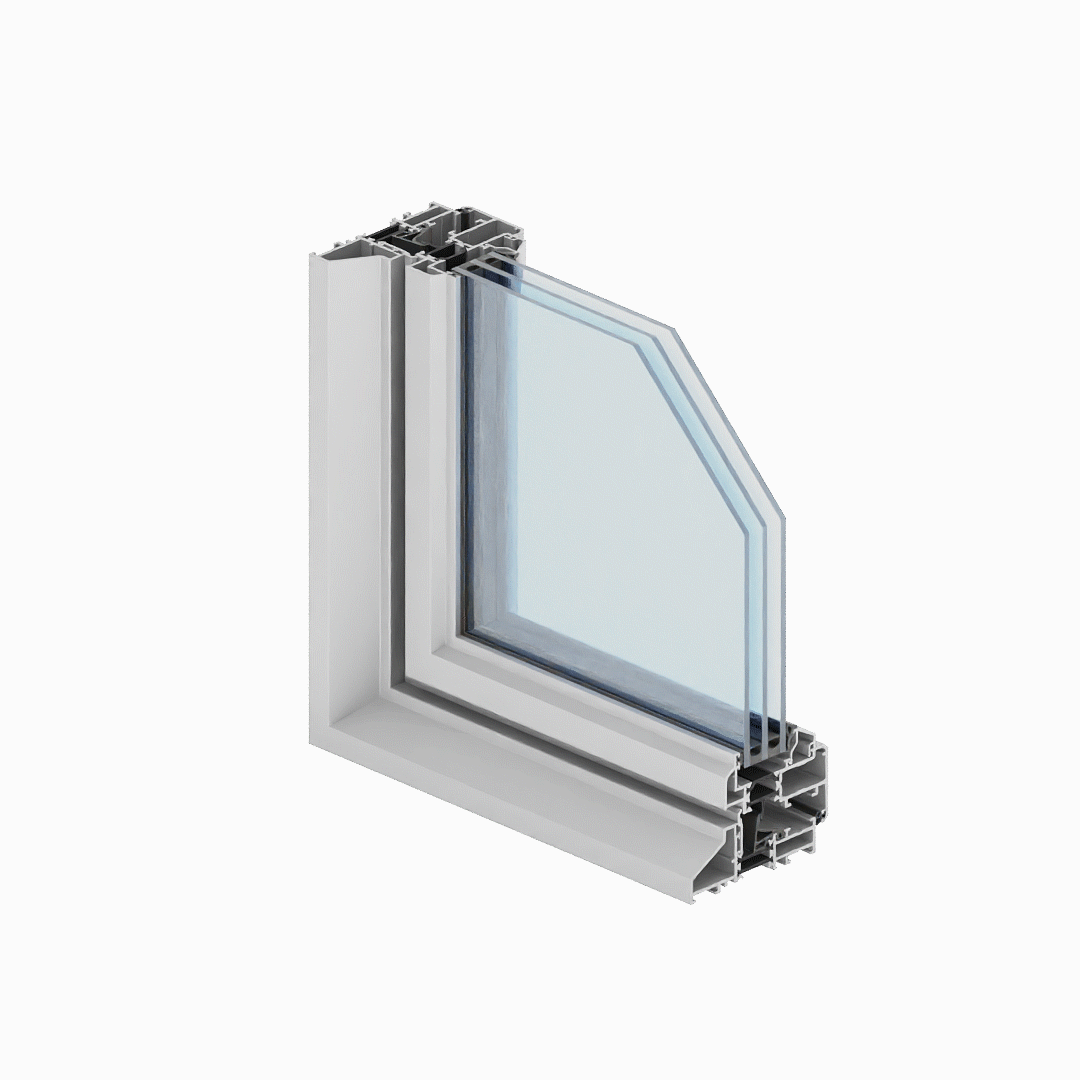

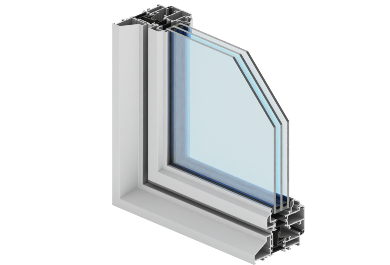

  • a window and door system with thermal insulation, featuring a smooth and narrow profile line
  • a specific profile shape, which makes the structure look like steel profiles, provides the structure with a modern industrial character
  • Steel look 1000 is a system standing out on the market due to its unique design thermal insulation (Uf) from 1,85 W/m2K
  • a wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour
Show Hide
RAL
Wood Colour
Bicolor
Anode

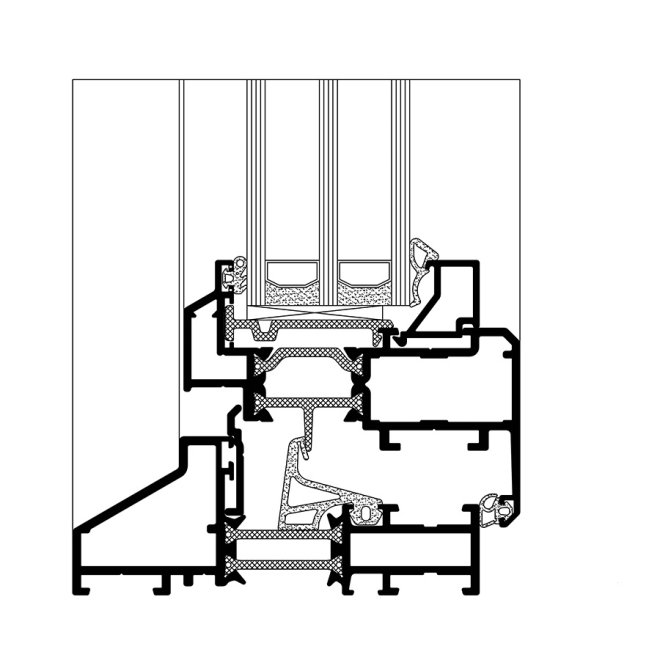

TECHNICAL SPECIFICATION

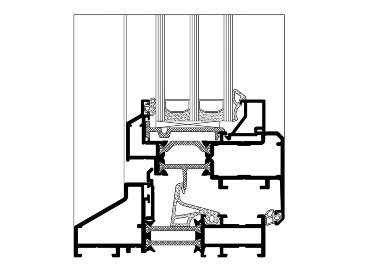

SYSTEM MATERIAL

DEPTH OF FRAME

DEPTH OF LEAF

GLAZING RANGE TYPE OF WINDOWS TYPE OF DOORS
ST 1000 aluminium/ polyamid 90 mm 74,4 mm 5-43 mm fixed glazing, tilt, turn tilt

PERFORMANCE

SYSTEM THERMAL INSULATION UF* AIR PERMEABILITY WINDLOAD RESISTANCE

WATERTIGHTNESS

ST 1000 Uf from 1,85 W/m2K Class 4; EN 12207

Class 7A (300 Pa); EN 12210

Class C4 (1600 Pa); EN 12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling

Files to download

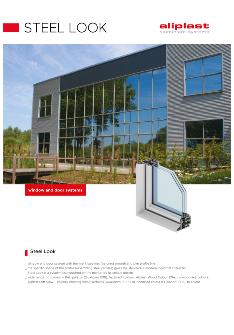

 LEAFLET STEEL LOOK 1000
