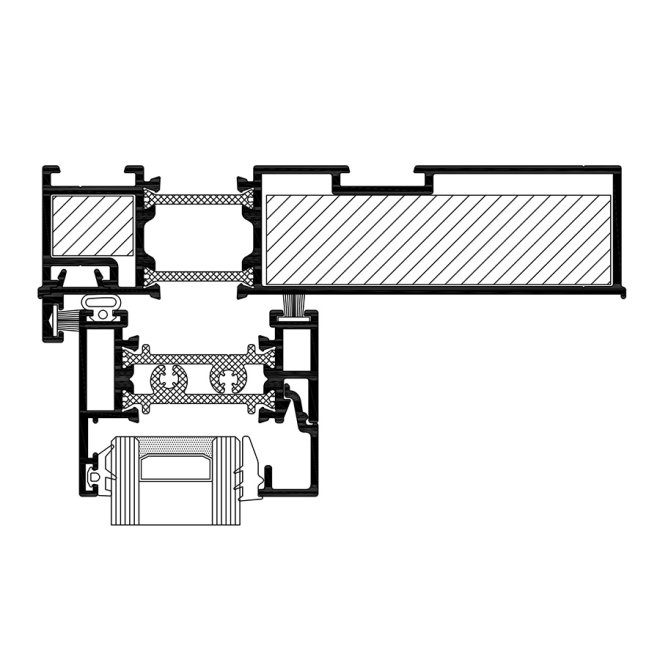

VS600



  • system featuring increased thermal insulation, for designing vertical sliding structures;
  • system equipped with a profile-concealed drive supplied by a reputable company, for the sashes to be moved vertically (the drive also provides the tilting function to make it easier to clean the outside of the glazing);
  • available infill thicknesses: 24 mm and 28 mm;

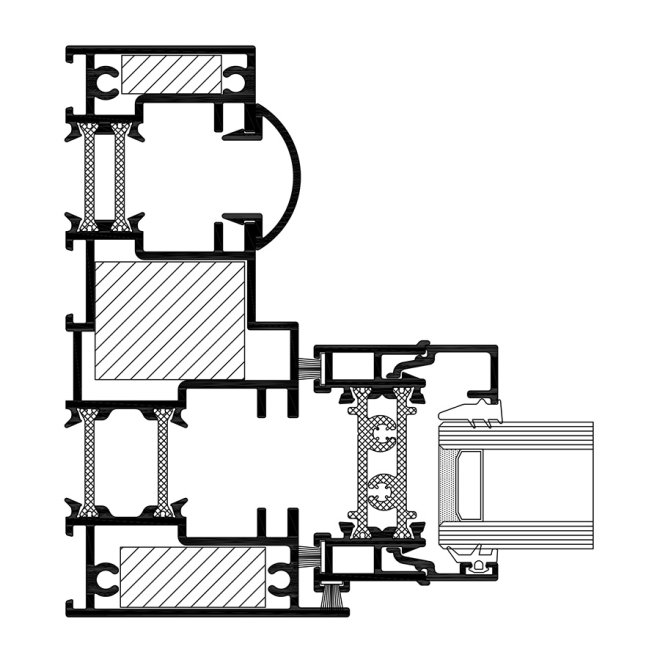

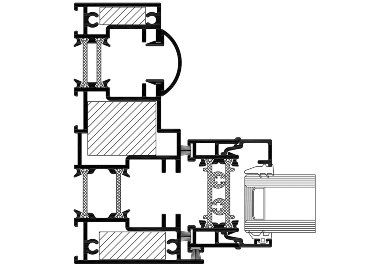

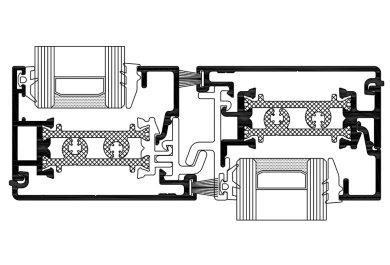

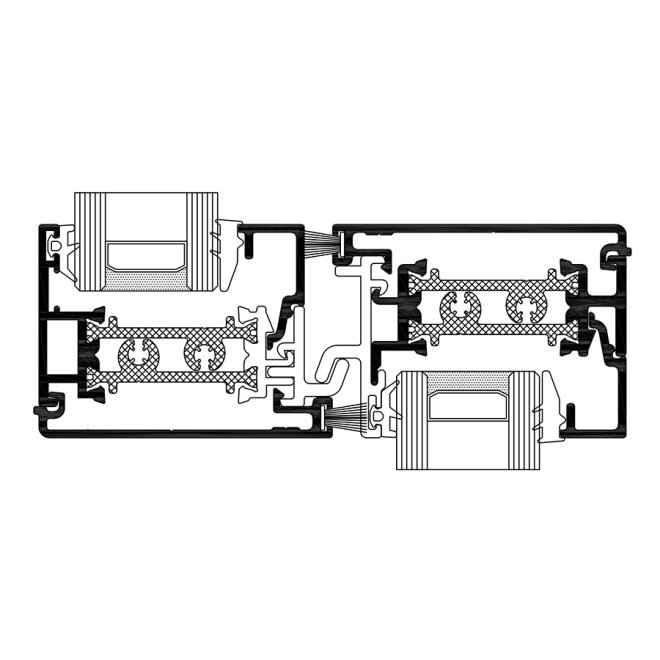

  • frame depth 126 mm

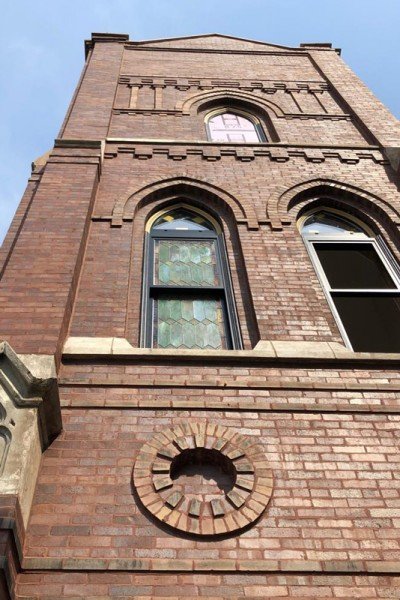

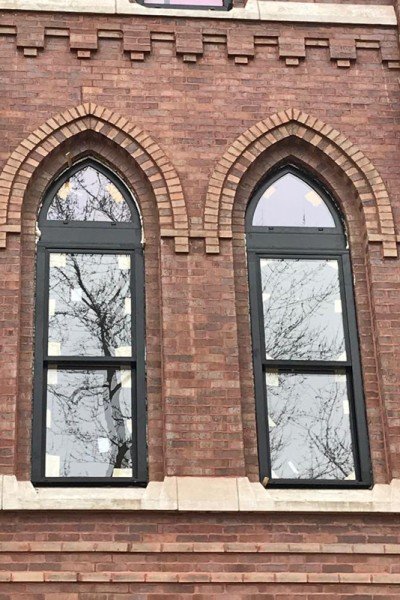

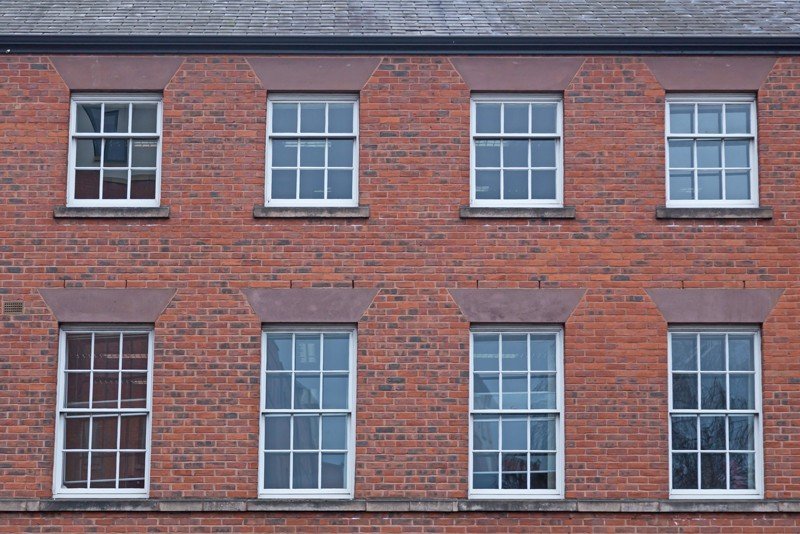

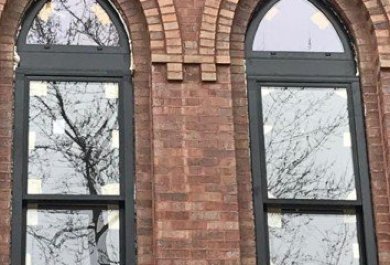

  • system used in the design of residential and public buildings (schools, hospitals, banks) as well as in renovation projects; it can be used as a pass-through window in offices, canteens, receptions, banks;
  • a wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour
Show Hide
RAL
Wood Colour
Bicolor
Anode

TECHNICAL SPECIFICATION

SYSTEM MATERIAL

MAX WIDTH

MAX HEIGHT

 MAX WEIGHT

GLAZING

TYPE OF WINDOWS

VS600 aluminium / polyamide 1600 mm 2490 mm 31kg (sash) 24mm, 28mm

vertical sliding window

PERFORMANCE

SYSTEM THERMAL INSULATION UF*

AIR PERMEABILITY

WINDLOAD RESISTANCE

WATERTIGHTNESS
VS600 Uf from 1,60  W/m2K Class 3; PN-EN 12207 Class A4; PN-EN 12210 Class 7A; (300Pa)

*Thermal insulation is dependent on a combination of profiles and thickness of the filling


Files to download

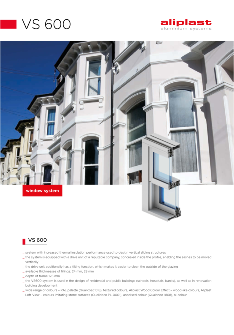

LEAFLET VS600
