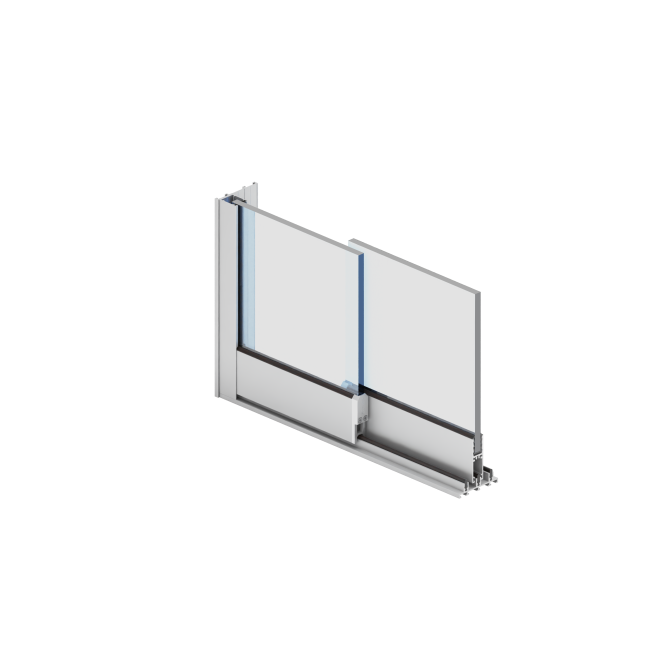

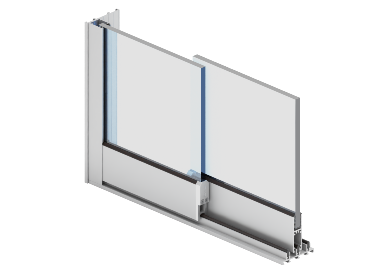

Slide Glass



Sliding system for glass structure installation without thermal insulation, characterized by minimal visibility of the edges of aluminium profiles.

  • the Slide Glass system offers a solution for a profile-free labyrinth joint (without sealing) or a joint between movable door leaves using a narrow brush profile.

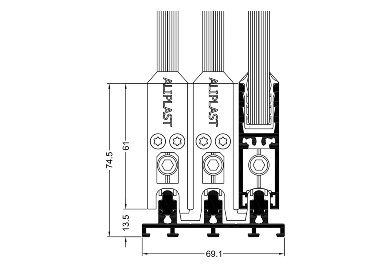

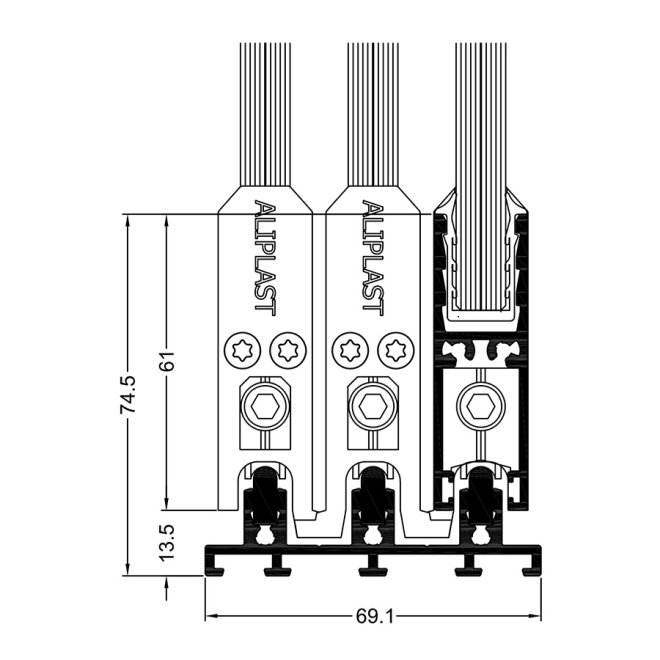

  • possibility of using 3-, 4- and 5-track guides
  • infill: 10 mm thick tempered glass
  • concealed drainage is possible in the system through lower subframe profiles
  • the system is equipped with dedicated hardware:
    - adjustable or non-adjustable trolleys
    - glass-fixed handle pull
    - and special hook locks
  • it can be closed using the built-in catch or the side closure with a lock.
  • the rails for moving the door leaves can be made of aluminium or stainless steel (the rails can be independent, mounted in the travel tracks).
  • system-based solutions provide for the possibility of compensating deflections from components located above the sliding body.
  • a wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour

System application:

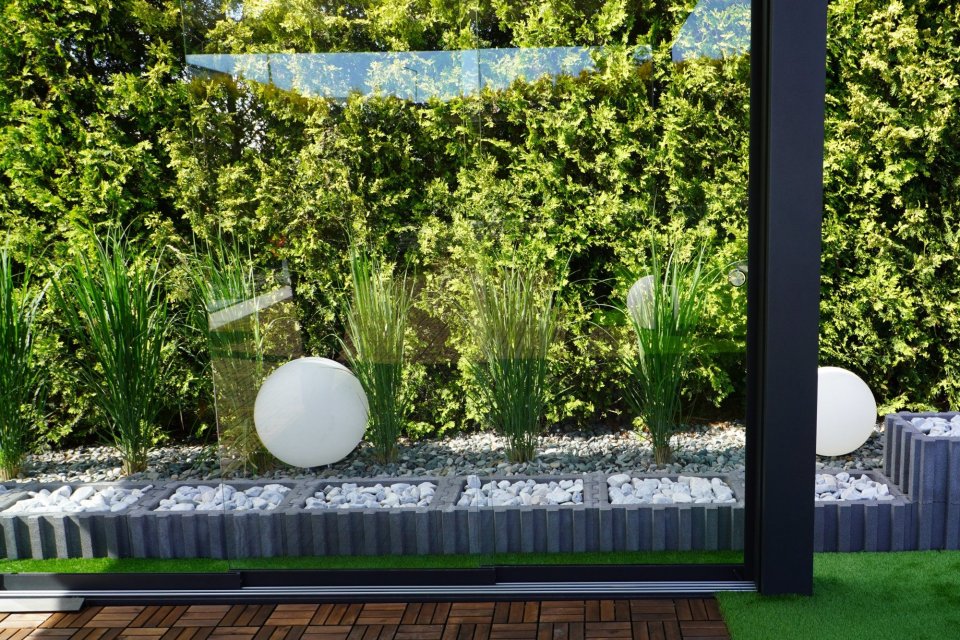

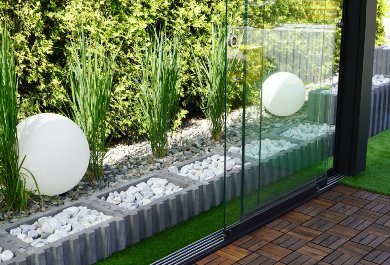

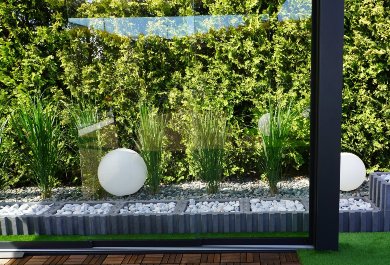

  • installation of vertical walls in pergolas, terraces, etc.
  • sliding glass doors
Show Hide
RAL
Wood Colour
Bicolor
Anode

TECHNICAL SPECIFICATION

SYSTEM

MATERIAL DOOR LEAF WIDTH DOOR LEAF HEIGHT GLAZING RANGE WEIGHT OF LEAF TYPE OF DOORS

SG

aluminium / glass 690 - 1130 mm up to 2600 mm 10 mm up to 80 kg sliding

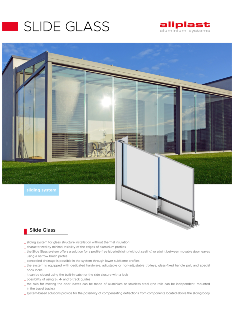

Leaflet Slide Glass
Leaflet Slide Glass
