Offer

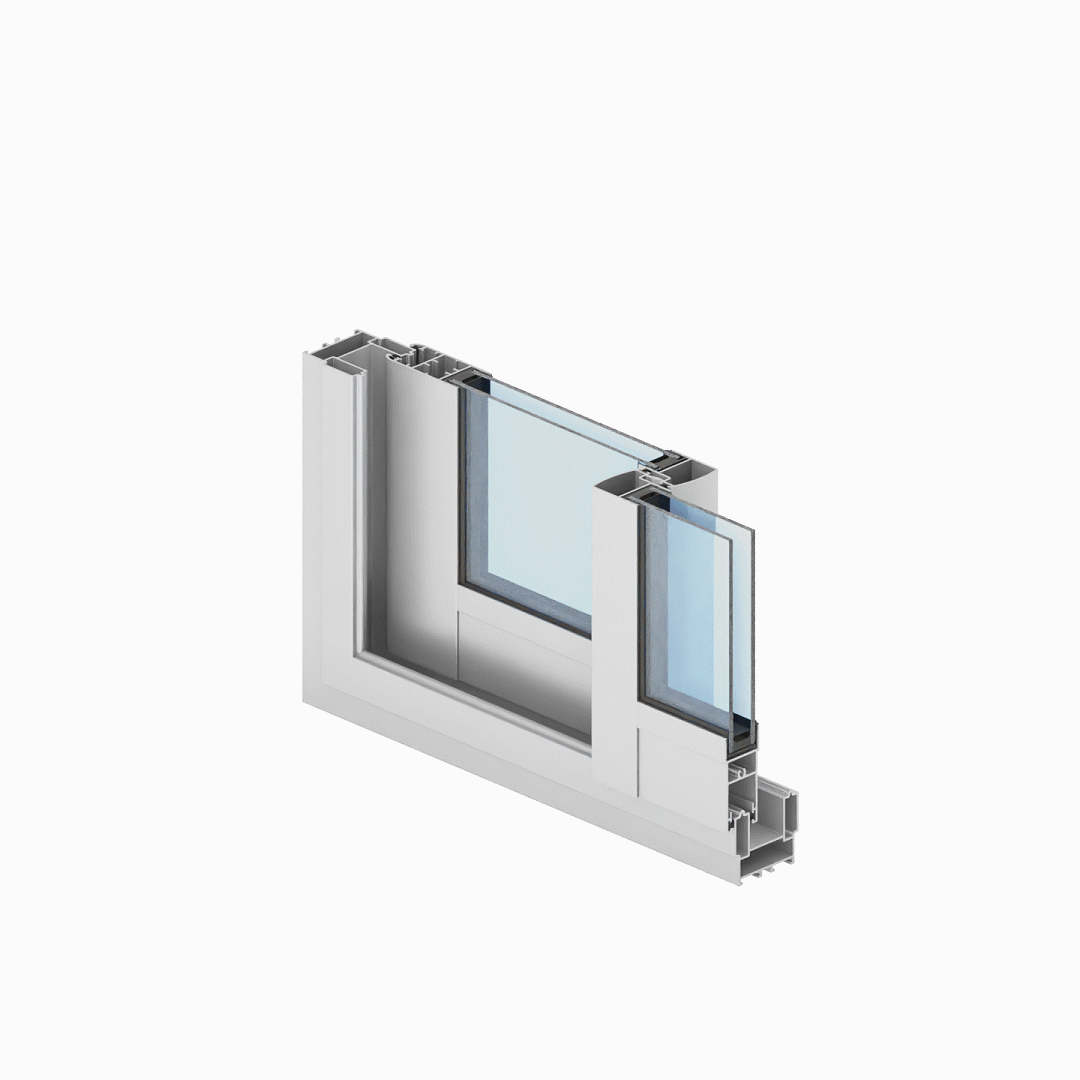

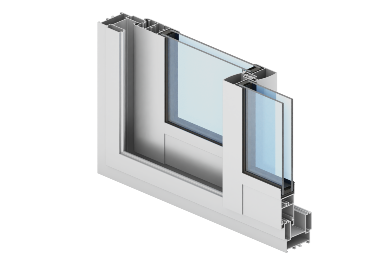

Slide Cold



  • a system without thermal insulation used to design sliding doors
  • the system is characterised by no glazing strips; infills are installed at the leaf installation stage in leaf C-shaped rabbets without glazing strips, with a seal which surrounds the infill
  • the frames are available in two versions: with an extruded slide rail and a separate profile for travelling trolleys (mounted at the lower sections of the leaves)
  • vertical leaf profiles have a profiled grip along the entire leaf height; the grips also provide static reinforcement of the structure
  • leaf corners are joined by screwing, whereas the frames can be screwed or crimped
  • there is possibility of use Flyscreen system (Flyscreen – fly screens are a practical andan extremely functional protection against insects)
  • a wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour
Show Hide
RAL
Wood Colour
Bicolor
Anode

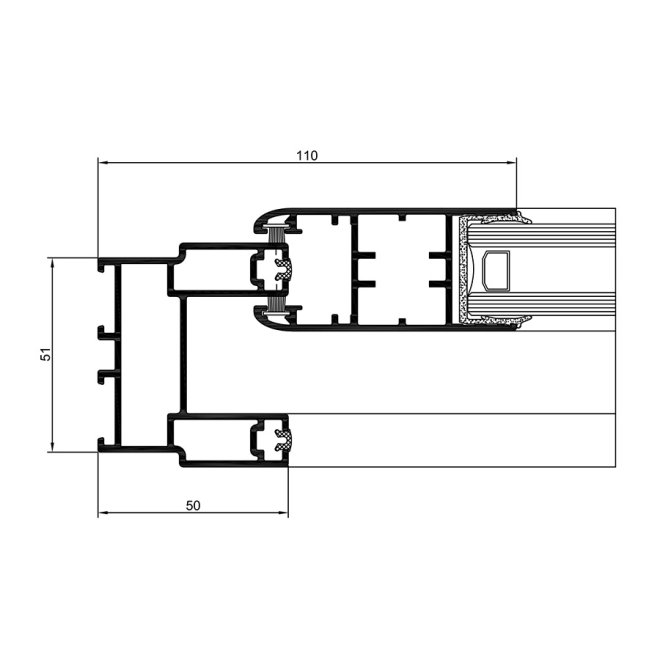

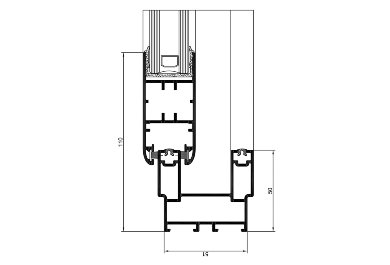

TECHNICAL SPECIFICATION

SYSTEM

MATERIAL

DEPTH OF FRAME DEPTH OF LEAF GLAZING RANGE WEIGHT OF LEAF TYPE OF DOORS
SL

aluminium/polyamide

47,5-99 mm 32 mm 6 - 9 mm / 20 - 24 mm to 160 kg sliding
Leaflet Slide Cold
Leaflet Slide Cold
