Offer

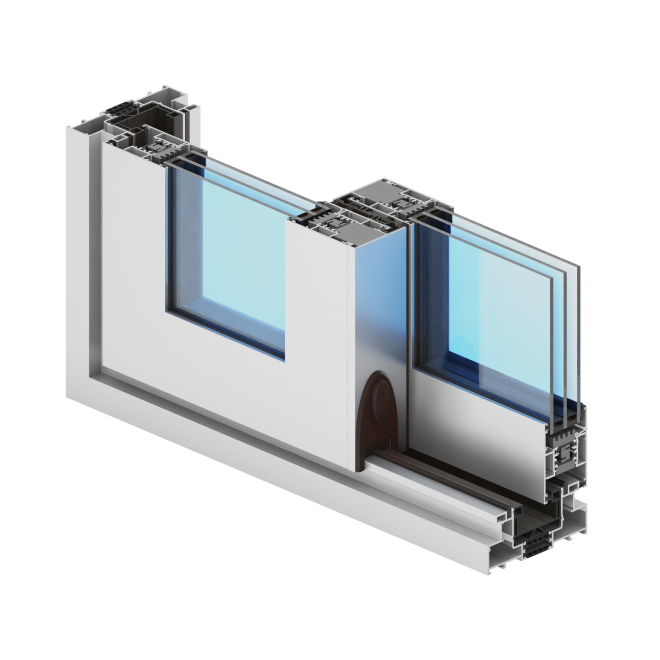

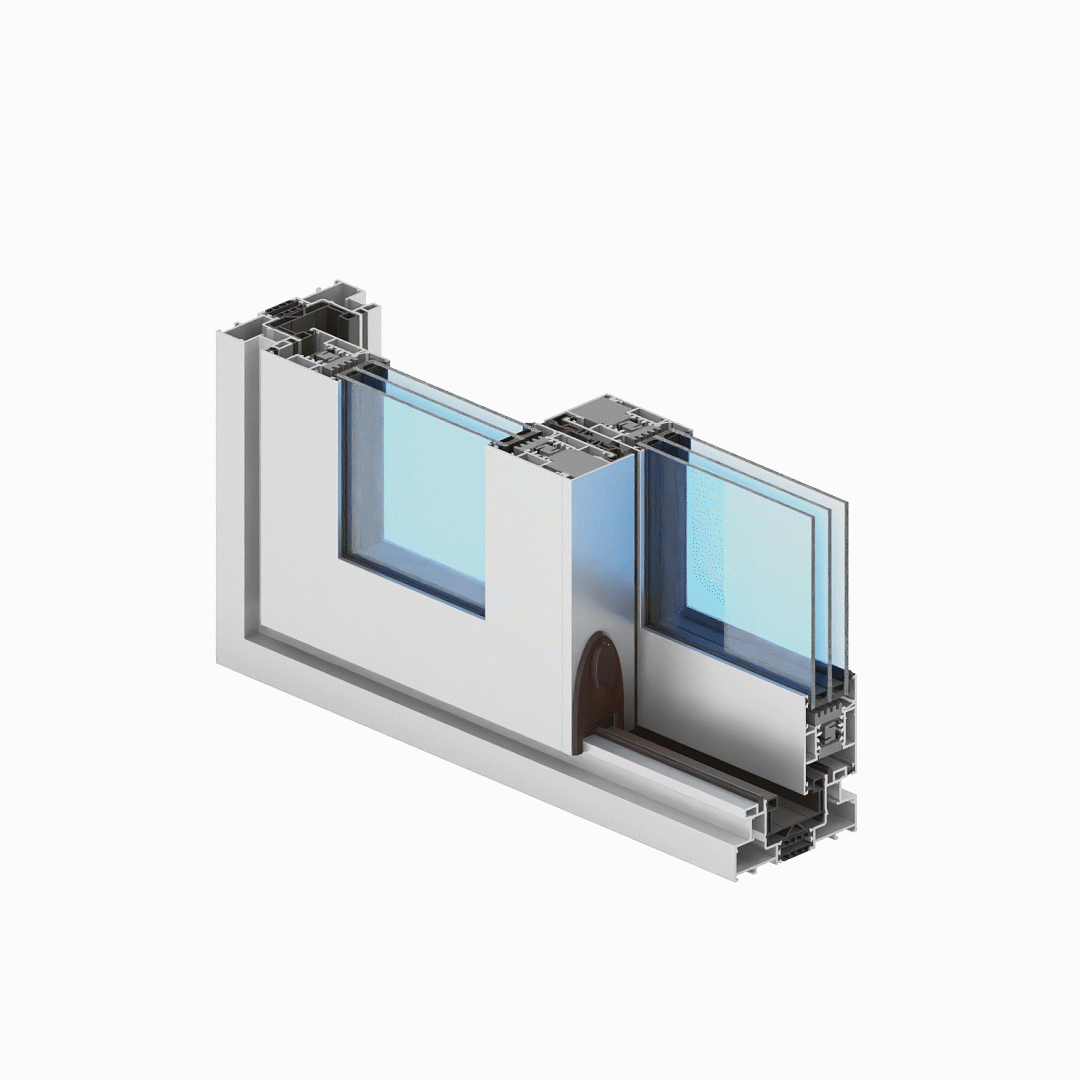

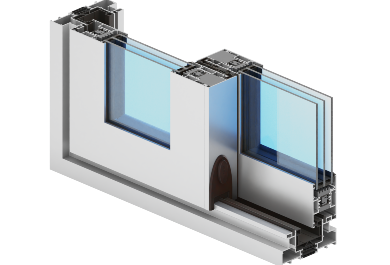

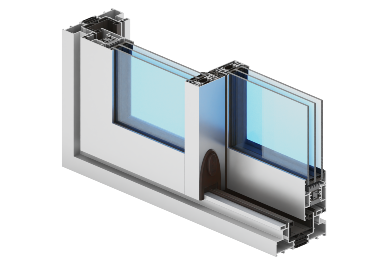

Visoglide Plus



  • a three-chamber system used to design sliding doors; the system is thermallyinsulated (thermal inserts made of an improved thermal performance material)
  • available options of the system: sliding and lift-and-slide
  • extremely narrow labyrinth stud in sliding and lift-and-slide leaves: 34 mm wide.
  • possible combinations of two, three, four and six elements on a two- or three-rail frame
  • available versions of the system: monorail
  • the fixed leaf can be adapted to a two- and three-rail frame
  • a wide range of window sill profiles (with concealed water drainage) and angular profiles
  • the Visoglide Plus system allows freedom of arrangement in modern office and residential spaces
    there is possibility of use Flyscreen system (Flyscreen – fly screens are a practical andan extremely functional protection against insects)
  • a wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour
Show Hide
RAL
Wood Colour
Bicolor
Anode

TECHNICAL SPECIFICATION

SYSTEM MATERIAL DEPTH OF FRAME DEPTH OF LEAF GLAZING RANGE WEIGHT OF LEAF TYPE OF DOORS
VG PLUS aluminium/thermal insulation 118/142/184 mm  51 mm 6-36 mm; monorail option: 18-60 mm to 250 kg in sliding option / to 200 kg in lift-sliding option sliding, lift sliding

PERFORMANCE

SYSTEM

THERMAL INSULATION UF*

AIR PERMEABILITY WINDLOAD RESISTANCE WATERTIGHTNESS
VG PLUS

Uf from 2,1 W/m2K

Class 4; EN 12207 Class C3 /B4 (1200 Pa); EN 12210 Class 9A; EN 12208

* Thermal insulation is dependent on a combination of profiles and thickness of the filling

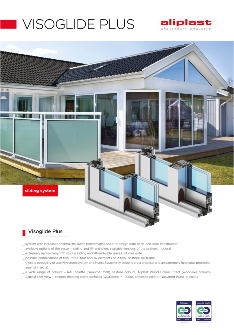

Leaflet VG Plus
Leaflet VG Plus
