Offer

Ecofutural

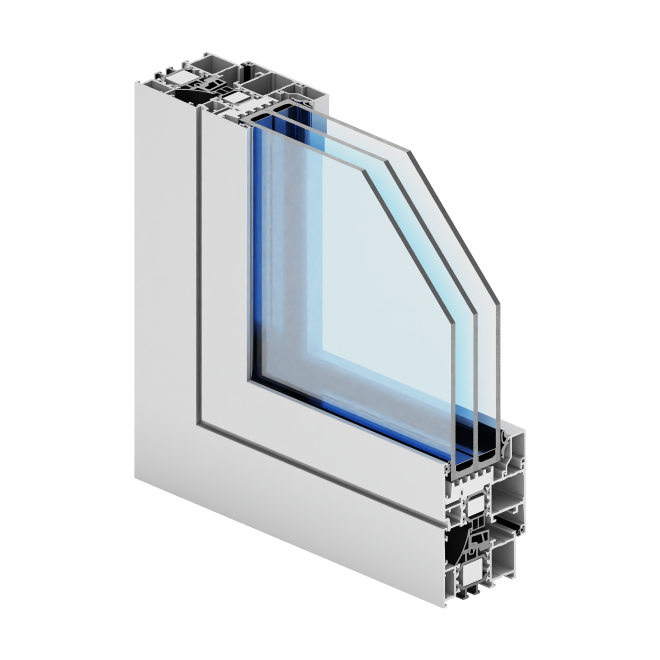

  • the three-chamber window-door system for designing windows and doors featuring high thermal performance; the system features very good technical parameters
  • an aluminium profile system with a thermal insert, used in locations where higher thermal performance is required
  • the Ecofutural system is available in a version with improved thermal performanc
  • options offered within the ECOFUTURAL system:

    ECOFUTURAL (i) – with thermal insulation on the perimeter in the spot where the window pane touches the profile;
    ECOFUTURAL (i+) – with thermal insulation on the perimeter in the spot where the window pane touches the profile and thermal insulation within the space between thermal inserts;

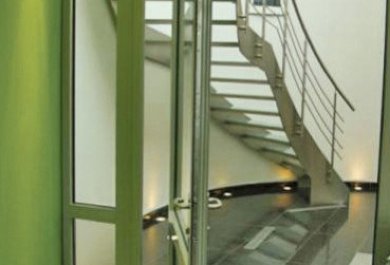

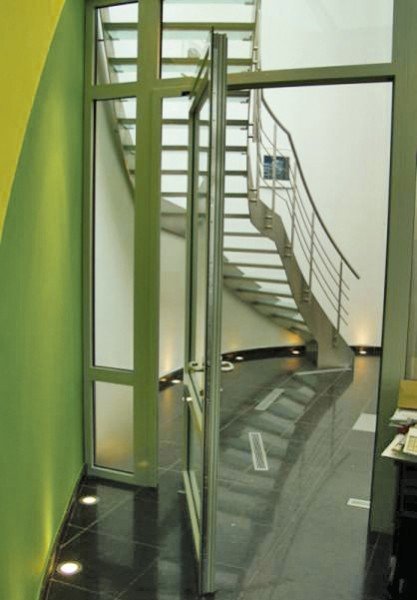

  • the system is suitable to design Monoblock type windows and doors with a displaced axis of rotation – PIVOT doors
  • profile shapes are suitable for installation of various types of envelope fittings, designed for the PVC groove
    the profiles can be bent; for a precise profile specification and details of technical parameters relating to profile bending, visit www.aliplast.pl and go to the customer zone
  • a wide range of colours available - RAL palette (Qualiocat 1518), structural colours, Aliplast Wood Colour Effect (Qualideco PL-0001), anodized (Qualanod 1808), bi-colour
Show Hide
RAL
Wood Colour
Bicolor
Anode

TECHNICAL SPECIFICATION

SYSTEM MATERIAL

DEPTH OF FRAME

DEPTH OF LEAF

GLAZING RANGE TYPE OF WINDOWS TYPE OF DOORS
EF aluminium/ polyamid 65-153 mm 74 mm fix 4-50 mm / window 13-59 mm fix, tilt, turn, tilt and turn single and double doors

PERFORMANCE

SYSTEM THERMAL INSULATION UF*

AIR PERMEABILITY

WINDLOAD RESISTANCE

WATERTIGHTNESS
EF Uf from 1,50 W/m2K Class 4 ; PN-EN 12207 C4 (1600 Pa); PN-EN 12210 9A (600Pa); EN 12208
 EF i Uf from 1,44 W/m2K Class 4 ; PN-EN 12207 C4 (1600 Pa); PN-EN 12210 9A (600Pa); EN 12208
EF i+ Uf from 1,27 W/m2K Class 4 ; PN-EN 12207 C4 (1600 Pa); PN-EN 12210 9A (600Pa); EN 12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling


attributes

Thermal insulation:  with thermal insulation,
Frame profile depth:  65 mm - 153 mm,
