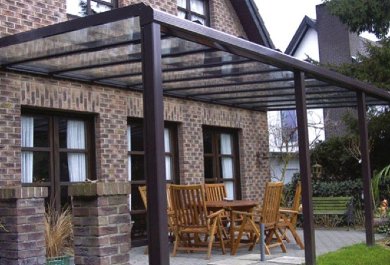

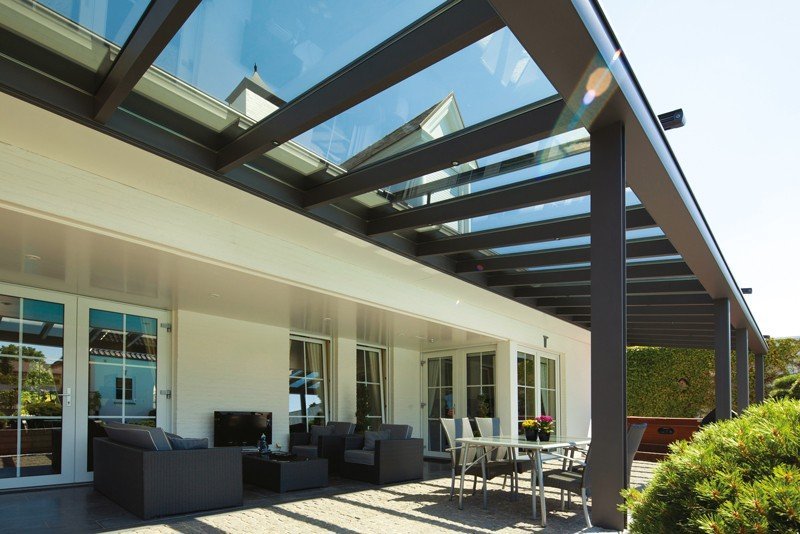

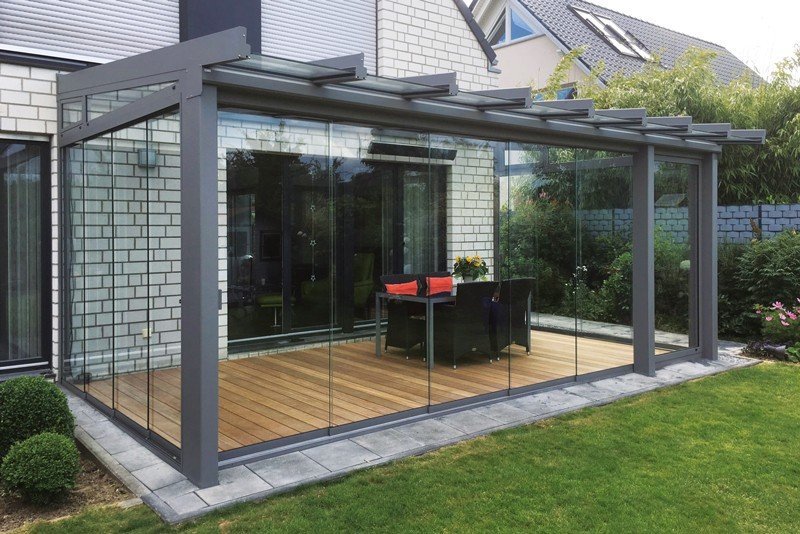

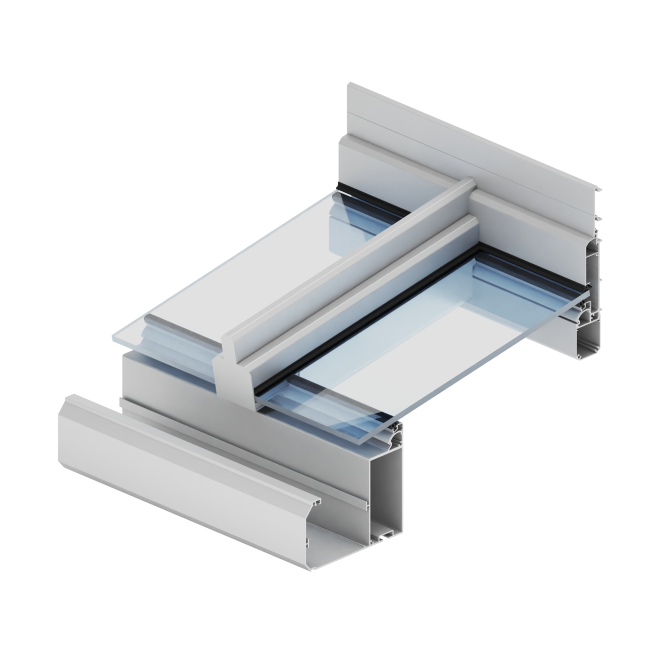

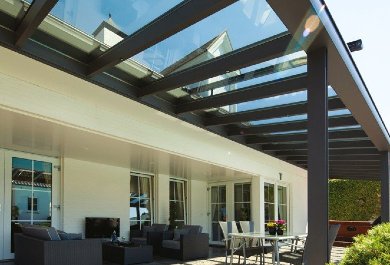

Terassendach

  • roof system without thermal insulation
  • the Terassendach system is suitable for infills made of wall polycarbonate and glazing units (single, double and triple glazing)
  • available options of the system:
    - eave with load-bearing rafter from the external side
    - pyramidal roof with various types of the load-bearing rafter (fixed externally)
    - double-pitched roof with external rafter
    - roof with valley gutters and external rafter
  • technical description:
    – span between two rafters up to 600 cm
    – depth of the load-bearing rafter up to 600 cm*
    * assumptions: VSG 10 mm, span between rafters 80 cm, snow load 85 kg/m2, deflection coefficient L/200
    - load-bearing structure with various gutter solutions
    - option to install solar shading devices to lateral structure beams
    - a wide variety of gutter solutions
    - roof pitch from 5 to 25 degrees
    - option to attach lighting through a terminal strip
    - quick prefabrication
  • a wide range of colours – RAL palette (Qualicoat 1518), structural colours, Aliplast Wood Colour Effect (Qualideco PL-0001), anodized (Qualanod 1808) and bi-colour
Show Hide
RAL
Wood Colour
Bicolor
Anode

attributes

Thermal insulation:  without thermal insulation,
Functions:  terrace roof,
Leaflet Terassendach
