Offer

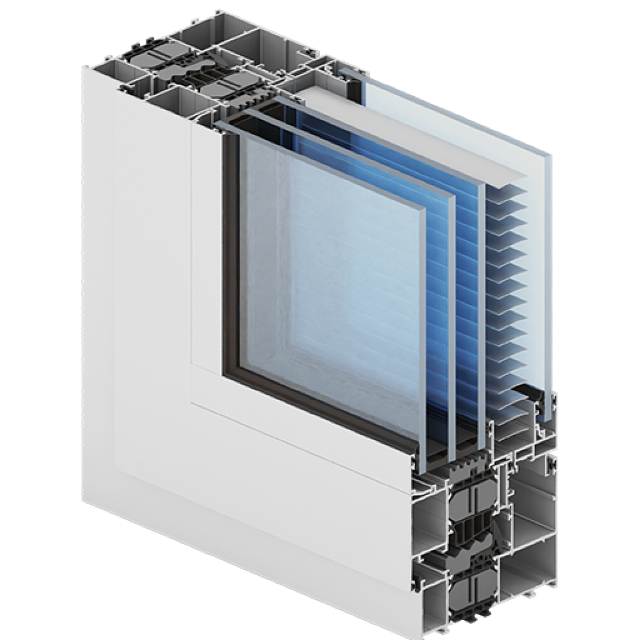

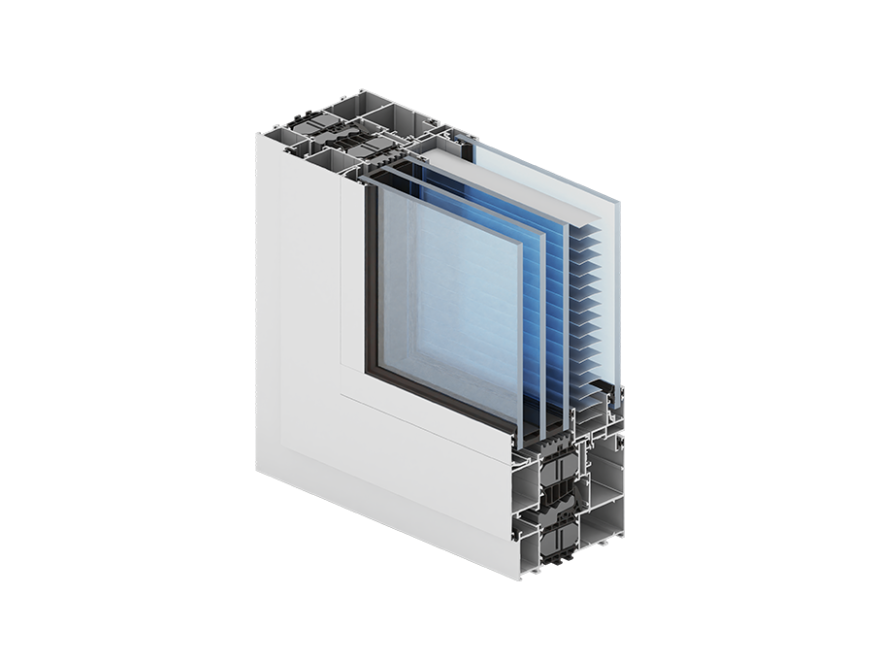

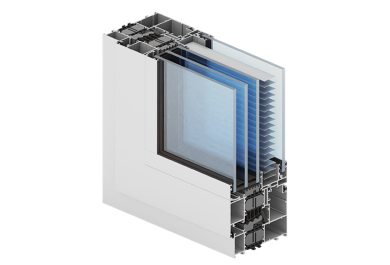

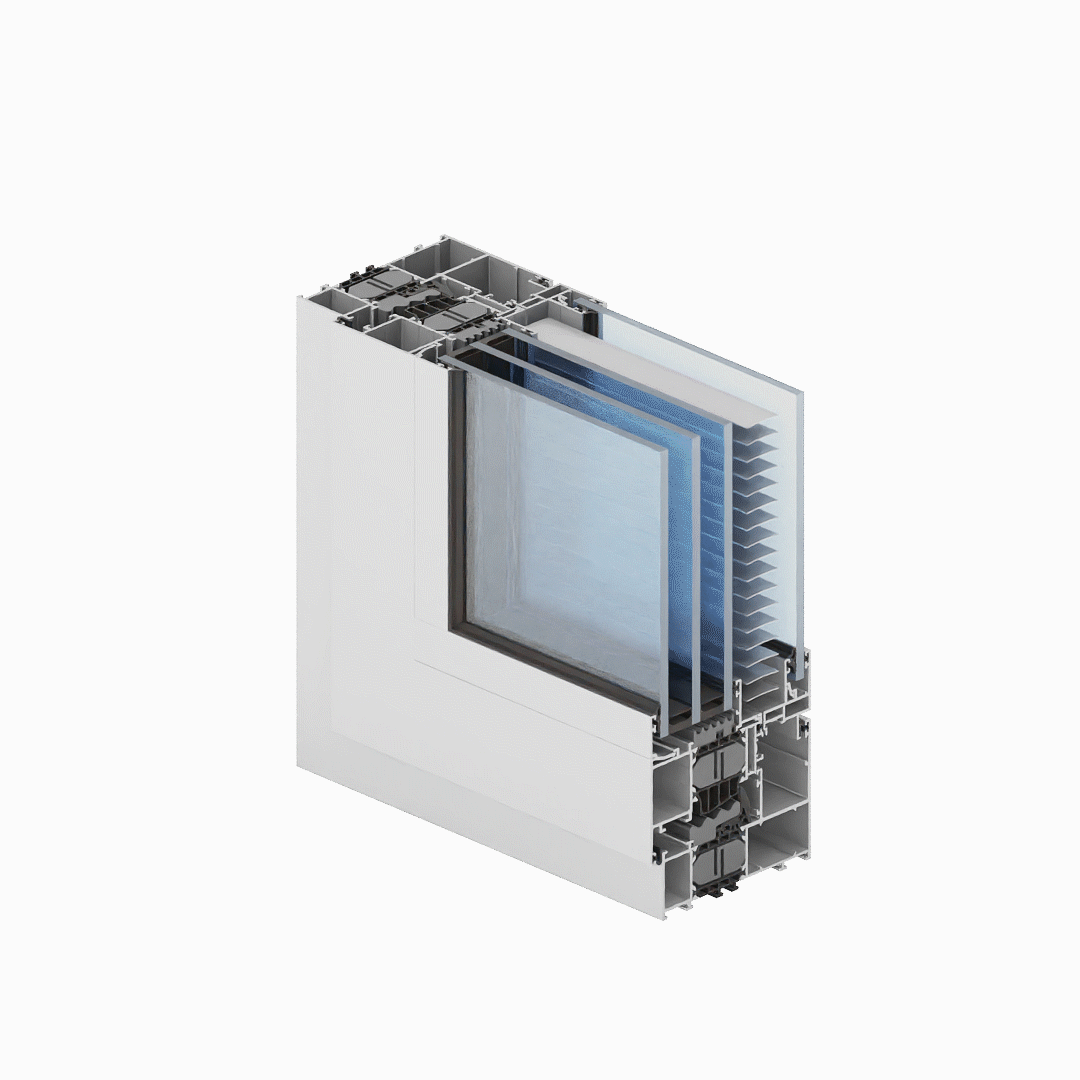

Genesis 75 with integrated shutter
- system designed on the basis of the Genesis 75 system (GN011 + GN031), possible to be complemented with subsequent profiles from the GN75 system family
- construction of the system extended with the possibility of integrating the internal shutter between the main glass and the additional external glass
- 4 glazed unit, providing even better acoustic parameters (acoustics in the range of 46 to 50 dB depending on the glass used, for the construction of a double sash window with a fixed post with dimensions of 2100 x 1900 mm)
- additional window pane: 6 or 8 mm tempered
- concealed cable routing in the frame and sash
- possible installation of control automation
- Uw = 0.79 W/m2K – for a 2100 x 1800 mm window with Ug = 0.5 W/m2K glass and Swisspacer Ultimate frame
- possible combinations of structures: single-sash window, double-sash window with a fixed post
RAL
Wood Colour
Bicolor
Anode
Technical specification
| system | material | depth of frame | post width | depth of leaf | maximum width of the shutter | post/sash assembly | frame/sash assembly | type of windows | thermal performance Uw* | acoustics |

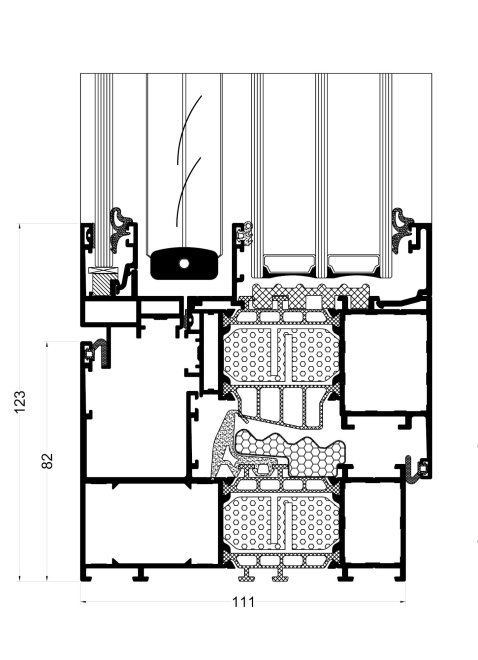

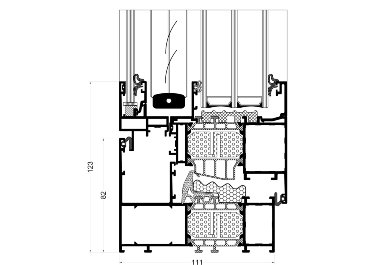

| GN 75 window with integrated shutter |
aluminium / polyamide |
82 mm | 124 mm | 87 mm | 26 mm | 205 mm | 122 mm | single-leaf, double-sash with a fixed post |
Uw* starting from 0.79 W/m2K | 46 to 50 dB** |
* Parameter for a 2100x1800mm window with Ug = 0.5 W/m2K glass and Swisspacer Ultimate frame
** Depending on the glass panes used
