Offer

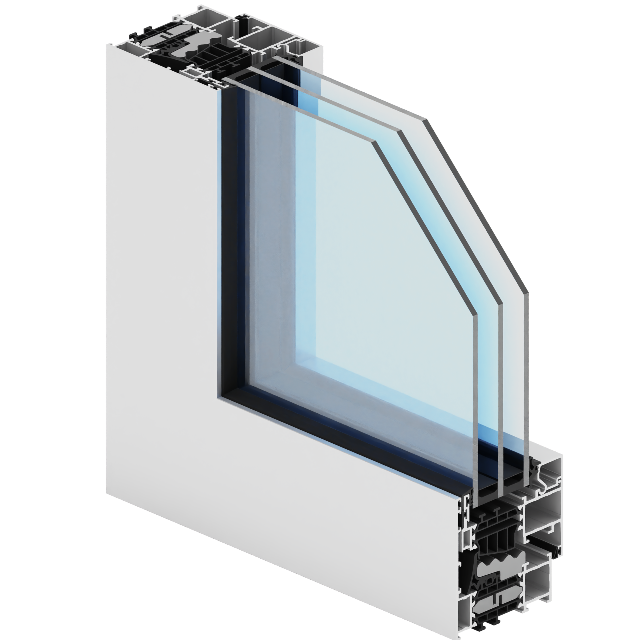

Genesis SU

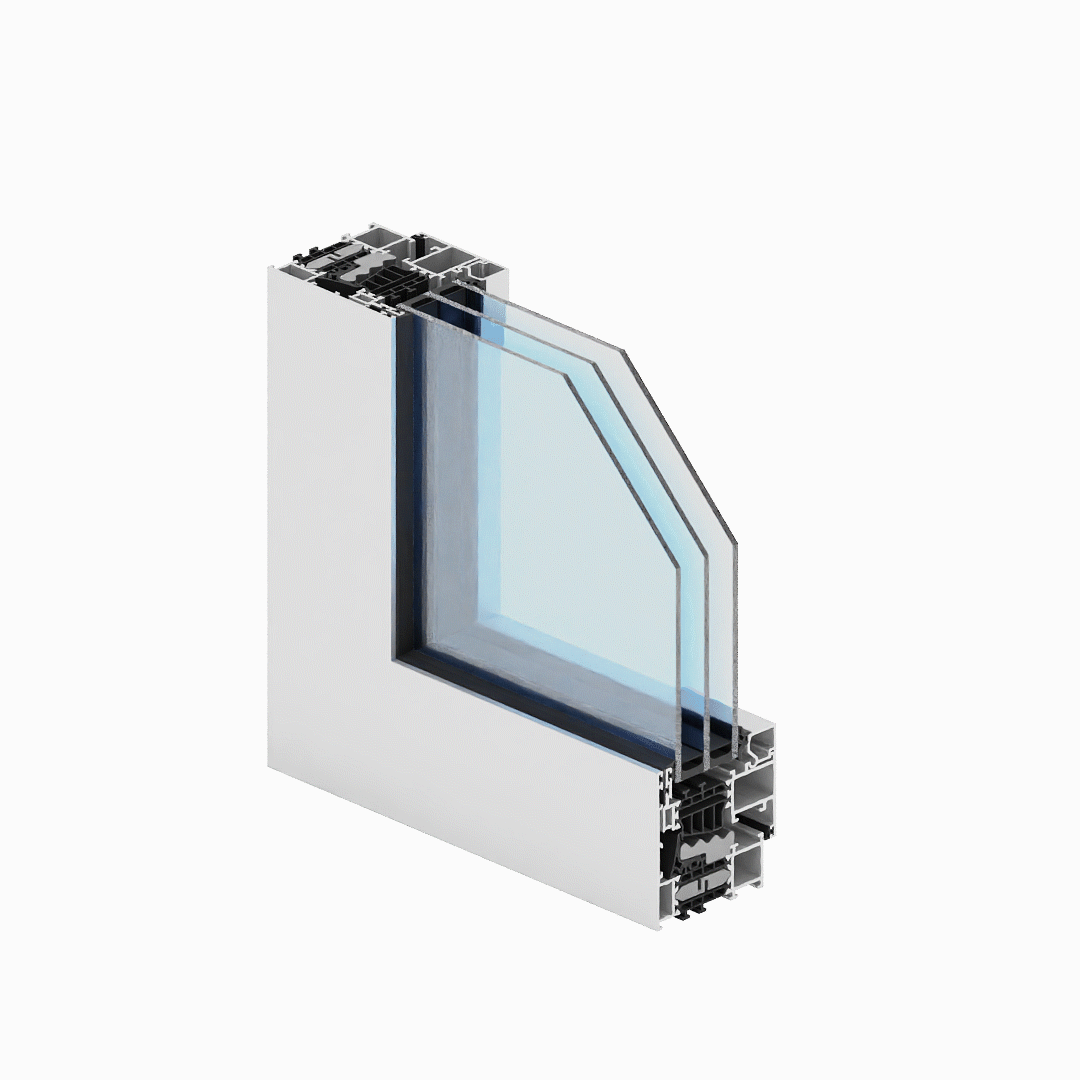

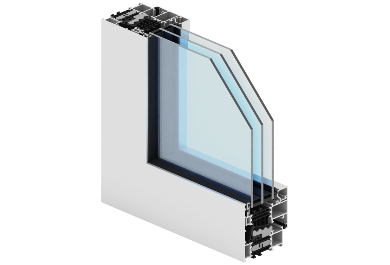

  • The triple-chamber window system with thermal insulation featuring a specially designed frame shape covering the entire height of the sash profile.
  • A wide range of glazing allows the use of all types of single and double-chamber, acoustic insulated or anti-burglary window panes.
  • There are 2 options of movable posts: standard and a narrow post for greater light passage.
  • Profile drainage available in two options: traditional and concealed.
  • Option of profile bending (detailed specification of profiles and details of technical parameters of profile bending – available in the authorised zone at www.aliplast.pl).
  • The concealed sash system is the solution preferred by designers, enabling "covering of windows" in aluminium-glass structures. With the use of this type of opening solution, openable and fixed lites look identical from the outside.
  • Low threshold option available for single and double, rectangular balcony doors (structures with the use of dedicated profiles).
  • Wide range of colours – RAL palette (Qualicoat 1518), texture colours, Aliplast Wood Colour Effect (wood-like colours), Aliplast Loft View – colours imitating stone surfaces (Qualideco PL-0001), anodised colour (Qualanod 1808), bi-colour.
Show Hide
RAL
Wood Colour
Bicolor
Anode

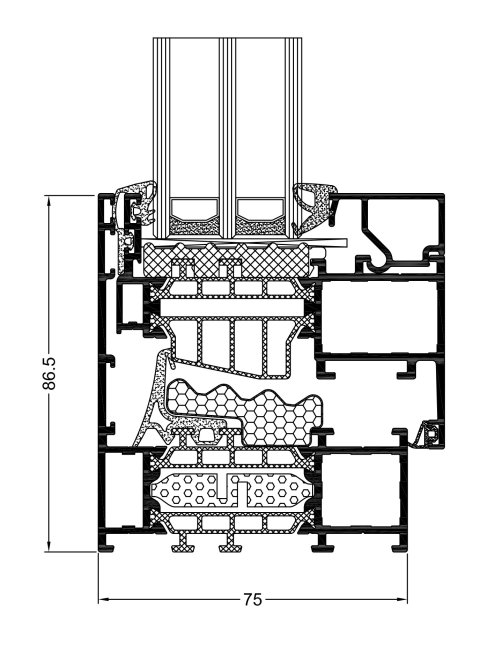

TECHNICAL SPECIFICATION

SYSTEM MATERIAL

DEPTH OF FRAME

DEPTH OF LEAF

GLAZING RANGE TYPE OF WINDOWS
GN SU aluminium/ polyamid 75 mm 79,5 mm max 62 mm / fixed 59mm inswing, fixed window, hidden sash

PERFORMANCE

SYSTEM THERMAL INSULATION UF*

AIR PERMEABILITY

WINDLOAD RESISTANCE

WATERTIGHTNESS
GN SU Uf from 1,47 W/m2K Class 4; PN-EN 12207  C5/B5 (2000Pa); PN-EN 12210  E1950 (1950Pa); PN-EN 12208
GN SU i Uf from 0,82 W/m2K Class 4; PN-EN 12207  C5/B5 (2000Pa); PN-EN 12210  E1950 (1950Pa); PN-EN 12208
GN SU i+ Uf from 0,79 W/m2K Class 4; PN-EN 12207  C5/B5 (2000Pa); PN-EN 12210  E1950 (1950Pa); PN-EN 12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling

Files to download

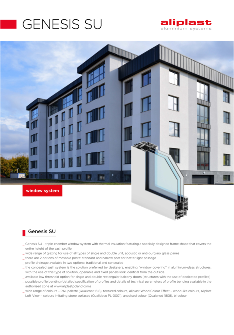

 LEAFLET GENESIS SU
