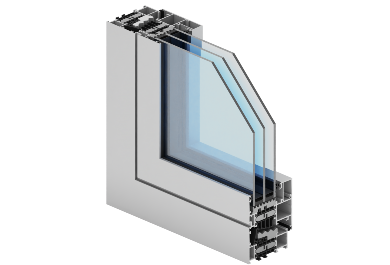

Genesis 75

  • the modern aluminium system for designing windows and doors requiring very good thermal insulation

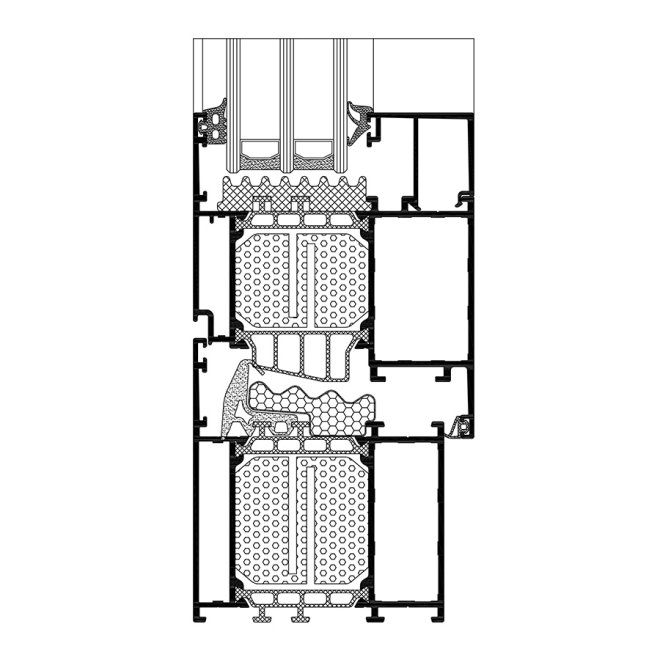

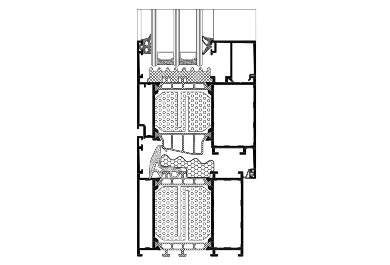

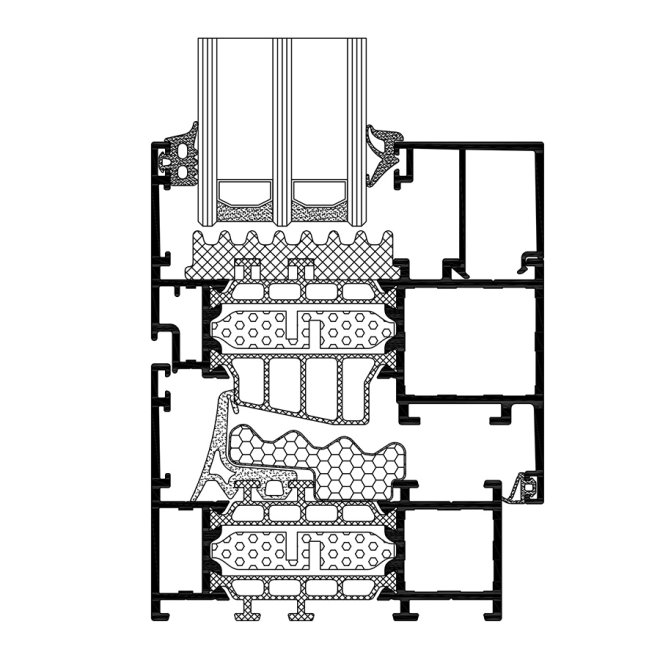

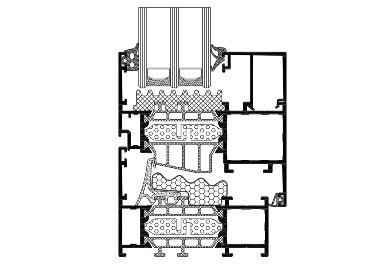

  • Genesis 75 system is based on 75 mm deep sections use to build frames
  • Genesis 75 is a system intended for designing windows and doors structures in public access buildings as well as single-family and multi-unit residential buildings
  • a wide range of sections/profiles available in the offer of the Genesis 75 system is used to design modern windows, doors and display units that ensure high functionality
  • the Genesis 75 system incorporates modern insulation materials that have just been launched onto the market; apart from a conventional central gasket, an additional thermal gasket has been developed as well; with this solution, it is possible to attain very excellent tightness of windows (air infiltration, water-tightness) as well as innovative appearance and aesthetics
  • the system will allow the customer to select various finish options for profiles so that the window structure can be customised (renovation profiles)
  • GN 75 system also allows to make a corner-to-corner combination of 90 degrees to achieve an impressive glass surface.
  • Genesis 75 system sets a new standard of window thermal performance, with the highest ergonomics of use and modern profile aesthetics maintained
  • on the basis of the GN75 door system can also be made panel doors
  • system options available: Genesis OUT (outward opening windows)
  • a wide range of colours available - RAL palette (Qualicoat 1518), structural colours, Aliplast Wood Colour Effect (Qualideco PL - 0001), bi-colour, anodized (Qualanod 1808)
Show Hide
RAL
Wood Colour
Bicolor
Anode

TECHNICAL SPECIFICATION

SYSTEM MATERIAL

DEPTH OF FRAME

DEPTH OF LEAF

GLAZING RANGE ACOUSTIC TYPE OF WINDOWS TYPE OF DOORS

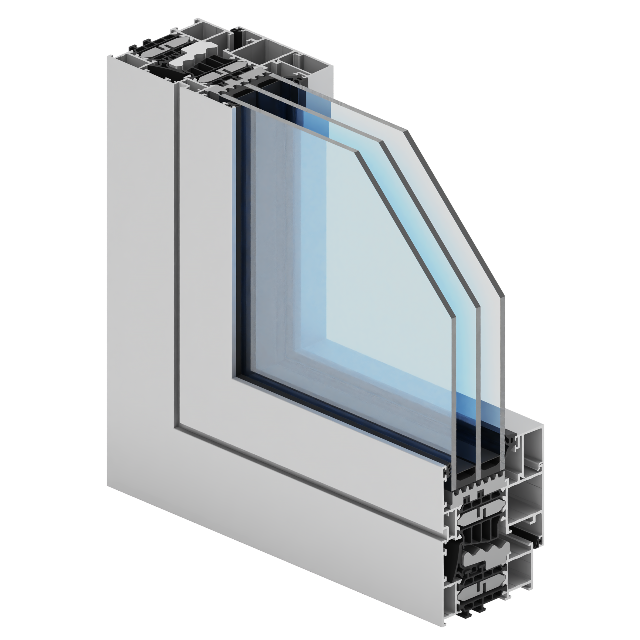

GN 75 window aluminium/ thermal insulation 75 mm 84 mm fix 1 - 56 mm / 9-65 mm 45 (-1,-3) dB fix, turn-only, tilt and turn -

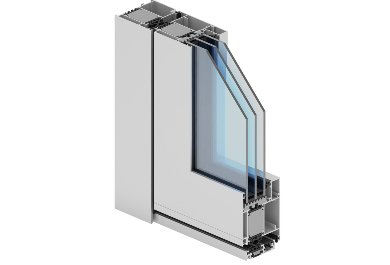

GN 75 door aluminium/ thermal insulation 75 mm 75 mm 1 - 59 mm 44 (-1,-4) dB - single and double doors, outside and inside opening, panic doors

PERFORMANCE

SYSTEM THERMAL INSULATION UF*

AIR PERMEABILITY

WINDLOAD RESISTANCE

WATERTIGHTNESS
GN 75 window Uf from 1,35 W/m2K Class 4; PN-EN 12207  E2400 (2400 Pa); PN-EN 12210 E1800 (1800Pa)/E1950*(E1950 Pa); PN-EN 12208
GN 75 i+ window Uf from 0,76 W/m2K Class 4; PN-EN 12207 E2400 (2400 Pa); PN-EN 12210 E1800 (1800Pa)/E1950*(E1950 Pa); PN-EN 12208
GN 75 door  Uf from 1,625 W/m2K Class 4; PN-EN 12207  C5 (2000Pa); PN-EN12210 E1200 (1200Pa); PN-EN 12208
GN 75 i+ door Uf from 1,195 W/m2K Class 4; PN-EN 12207  C5 (2000Pa); PN-EN12210 E1200 (1200Pa); PN-EN 12208

*Thermal insulation is dependent on a combination of profiles and thickness of the filling

*A value of 1950 Pa was obtained during testing

attributes

Thermal insulation:  with thermal insulation,
Frame profile depth:  75 mm,
Functions:  inside opening,
Burglary resistance:  RC2, RC3 for door,
